Night vision devices & thermal cameras > Instruments > 2nd generation > Armasight > NYX-14 > Armasight NYX 14 IDi monocular night vision device, gen. 2+
Product no.: 44498

NYX 14 IDi monocular night vision device, gen. 2+

$ 2,960.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

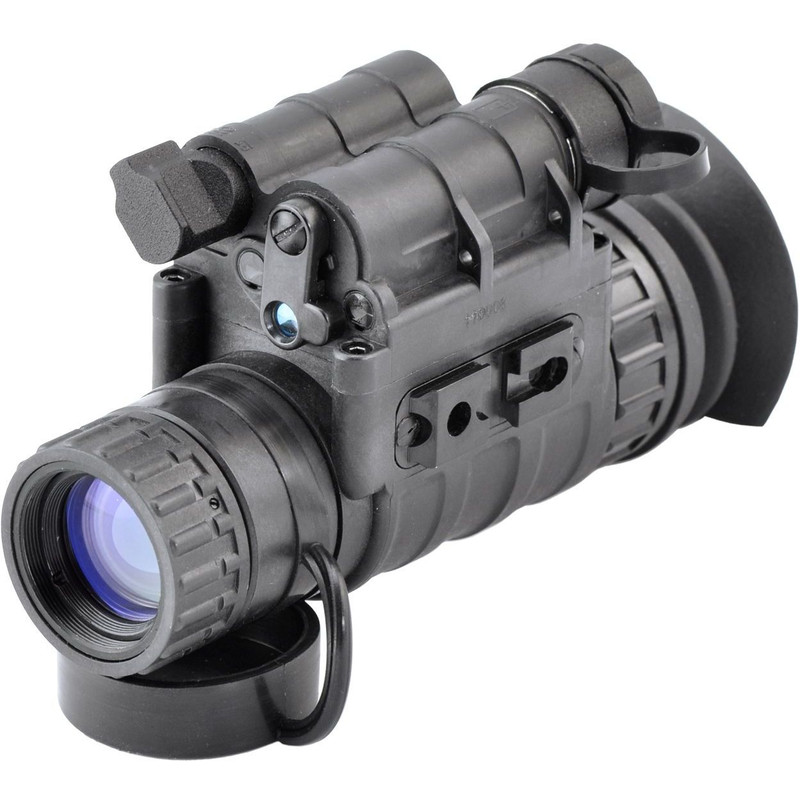

Armasight NYX-14 is a lightweight and rugged multi-purpose night vision device in a monocular design.

It can be used hands-free with an optional head mount and attached to a camera using adaptors. For observations at longer distances, you can attach ancillary lenses with 3x, 5x or 8x magnification. The Weaver standard adapter rail has a tripod thread, allowing you to mount additional accessories such as powerful IR lighting.

The NYX-14 is based on a monocular design. This allows you to see with one eye, even in complete darkness, while the second eye can react quickly when the light situation changes. This reduces the risk of temporary night blindness.

The built-in infrared illuminator allows observations in complete darkness. Armasight NYX-14 uses state-of-the-art optics and a glass fibre reinforced composite housing. It is designed to meet MIL-SPEC-810 requirements. The automatic gain control adjusts the light amplification depending on the ambient light conditions. The NYX-14 is equipped with an automatic shut-off when looking into bright light sources. This system monitors the existing light level via light receptors.

The Armasight NYX-14 is suitable for outdoor enthusiasts and hunters, security personnel and research.

An "improved definition" image intensifier tube is built into the "IDi” version which has fewer cosmetic defects than a SDi version.

Specifications

Capacity


Type of build
Monocular
Technology
2nd generation
Magnification
1 (Attachment lens 3x, 5x, 8x optional)
Image-intensifier tube resolution
40-50
Diopter compensation
-2 / +6
Battery type
CR123A or 1.5V AA
Battery durability (h)
60
Image display
green / white
Image-intensifier tube
IDi

Special features


Infrared illuminator
yes
Digital imaging
-
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
Video connection
-

Field of view


True field of view (°)
40
Field of view at 100 m (m)
700
Close focus limit (m)
0,25

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
140
Width (mm)
69
Height (mm)
49
Weight (g)
400
Series
NYX-14

Miscellaneous


Battery type
CR123 (1 piece)
Battery type
Mignon (AA, LR6) (Alternative 1 piece)

Product safety

Manufacturer:
