Astronomy > Telescope accessories > Astrophotography > Cameras > Astronomical Cameras > Bresser > Bresser Camera HD Moon Planetary Guider 1.25" Color
Product no.: 77298

Camera HD Moon Planetary Guider 1.25" Color

$ 148.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • High light sensitivity
  • Low-noise Sony CMOS sensor
  • Powerful ToupSky software

Product description

Affordable entry-level model for astrophotography, ideal for the moon, planets or bright star clusters.

Equipped with the new highly sensitive SONY IMX225 CMOS colour sensor, this camera delivers amazingly good image results even with simple telescope equipment. This modern camera can also be used as an autoguider.

The particularly low noise level of this new chip generation from Sony ensures exceptionally high brilliance and no cooling is required.

The ToupSky professional software included in the scope of delivery not only offers the necessary basic functions for image and video recording, but also many helpful special functions for image post-processing and setting up the guide. Functions such as live image display, exposure settings, white balance, dark frame subtraction, stacking, time-lapse recording and much more can be individually configured.

The highly sophisticated software makes it really easy to get started in astrophotography. With the automatic settings, you can achieve impressive results even without much prior knowledge. If you want, you can simply switch off the automatic settings and gradually venture into the individual professional settings.

Connect the camera directly to the ST4 connection on your telescope mount and you have fully automatic tracking control. A corresponding ST-4 connection cable is even included with the camera. Due to the camera's high light sensitivity, you will always find a suitable guide star, even with very short exposure times.

For connection to telescopes, the camera has a 1.25" bayonet mount, 1.25" filter thread (M28.5x0.6) and C-mount thread (1"x1/32").

Scope of delivery:

  • HD camera
  • C-mount adaptor with 1.25'' filter thread
  • USB 2.0 connection cable, 180 cm long
  • Control cable for ST-4 autoguider function, 150 cm long
  • Dust cap for camera opening
  • Software CD

Specifications

Capacity


Colour camera
yes
Sensor type
CMOS Chip (SONY IMX225)
Megapixel
1,2
Pixel size
3,75
Active cooling
no
Size of chip (mm)
4,8 x 3,6
Bit depth (Bit)
12
Resolution Photograph (Pixel)
1280 x 960
Binning
2 x 2
Interfaces
USB 2.0 & ST-4
Connection (to the telescope)
1,25" & C-Mount
Cable length (m)
2
Quantal efficiency
77
Supported operating systems
Windows 10 & 11
Min. exposure time
0,105
Max. exposure time (min)
16

Special features


Infrared filters
no

Equipment


Filter wheel
no

General


Outer material
Aluminium
Length (mm)
67
Diameter (mm)
37
Weight (g)
90

Area of application


Autoguider
yes
AllSky, Meteore
no
Moon & Planets
yes
Nebulae & galaxies
no

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de

Recommended accessories

Astronomy > Telescope accessories (3)

Omegon ADC atmospheric dispersion corrector

$ 149.00*
Astronomy > Other (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*

*All prices include VAT plus shipping costs.

Bresser Camera HD Moon Planetary Guider 1.25" Color

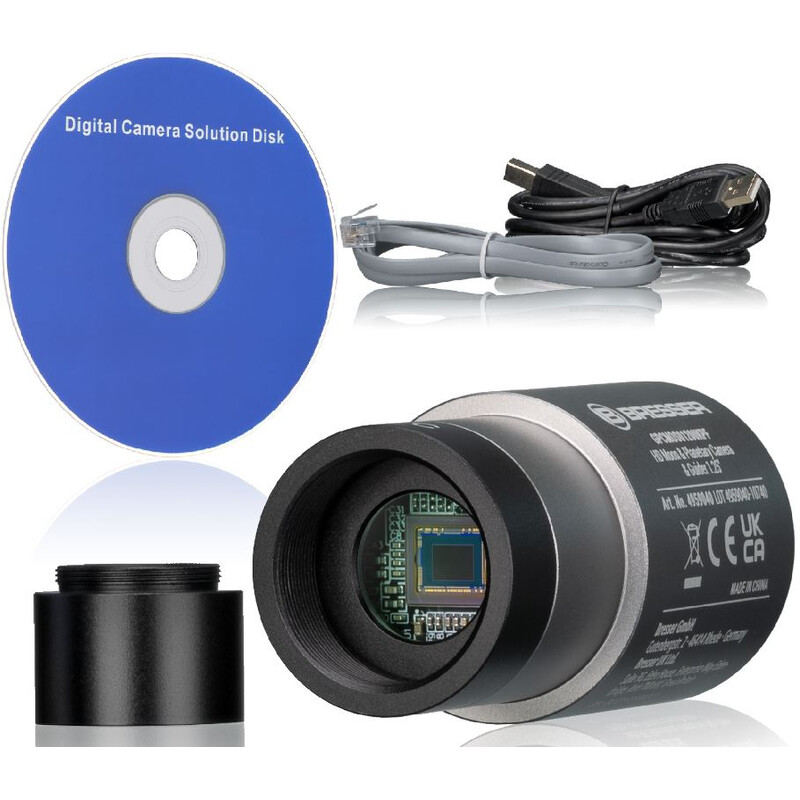

Scope of delivery
Bresser Camera HD Moon Planetary Guider 1.25" Color

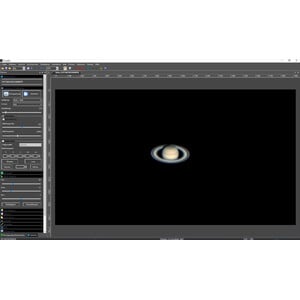

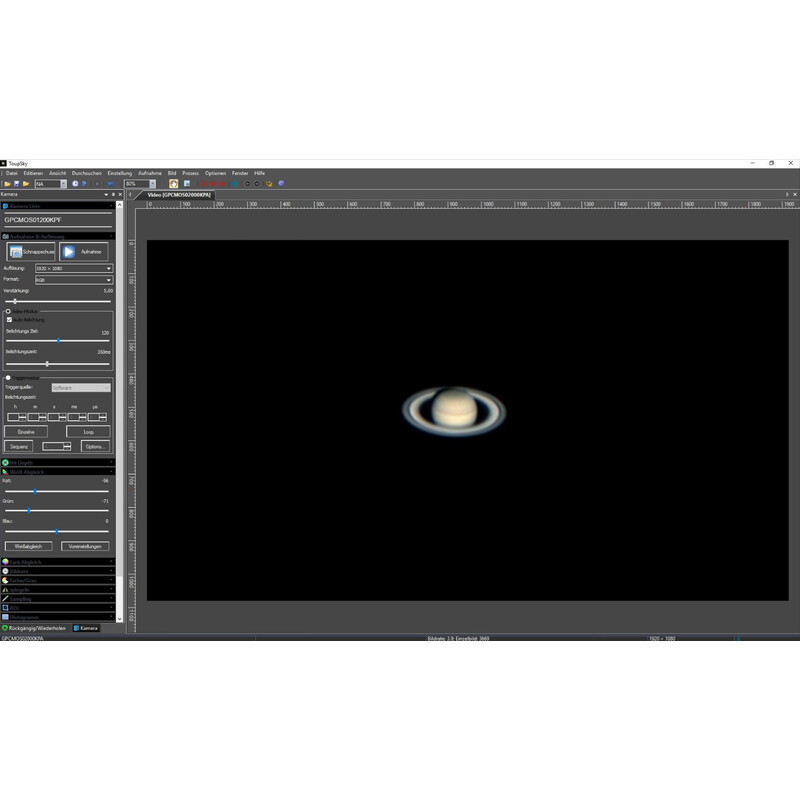

Screenshot
Bresser Camera HD Moon Planetary Guider 1.25" Color
Example
Bresser Camera HD Moon Planetary Guider 1.25" Color

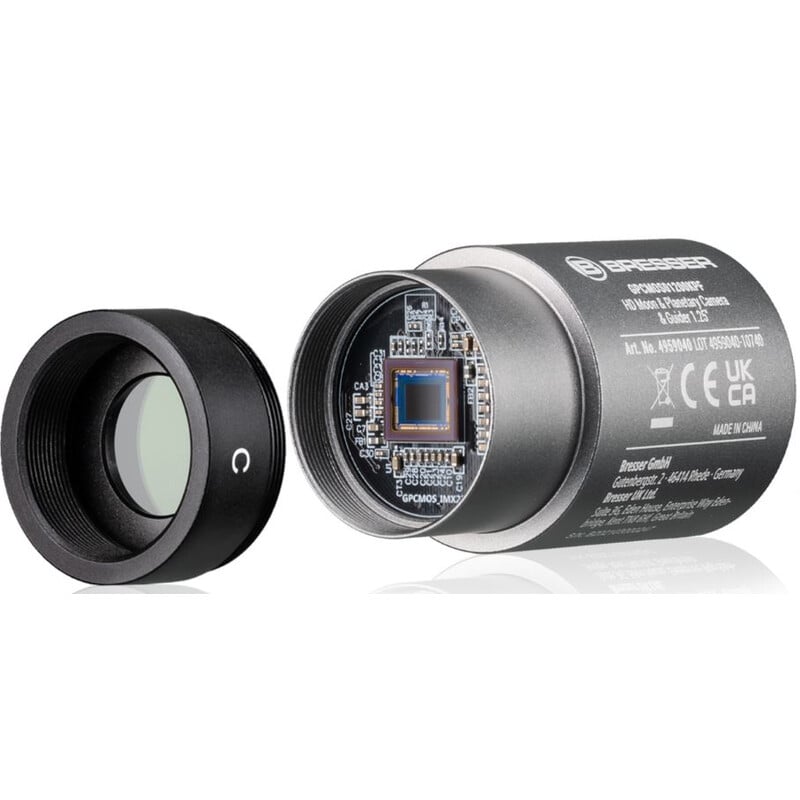

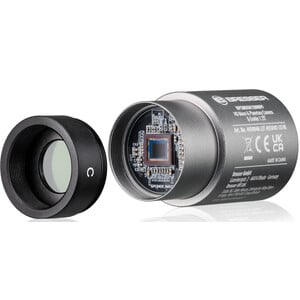

SONY IMX225
