Product no.: 85770

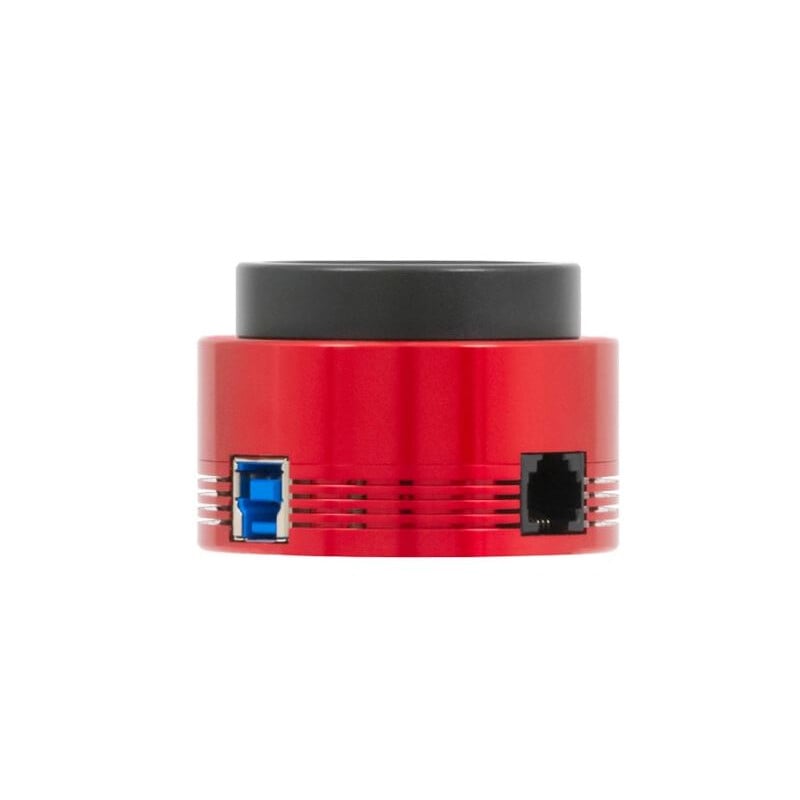

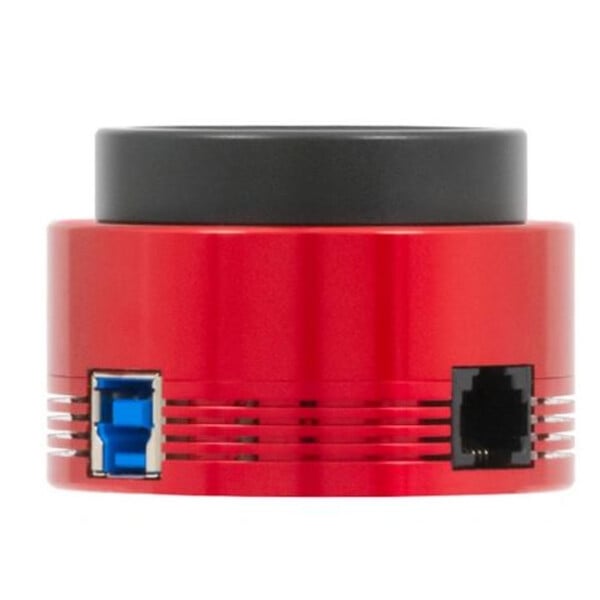

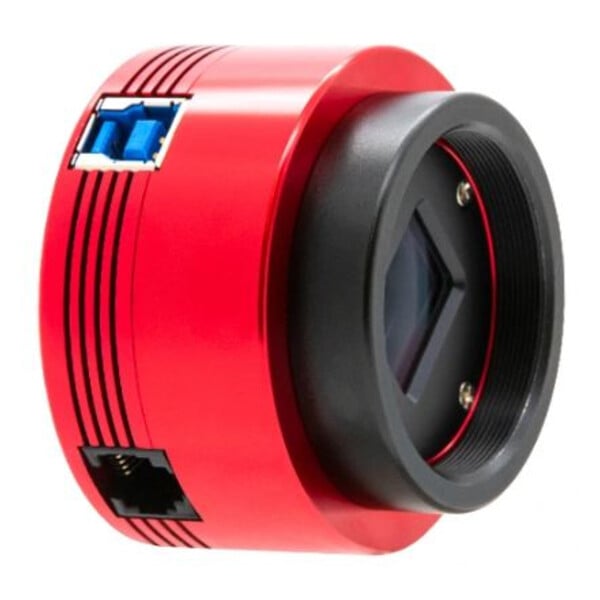

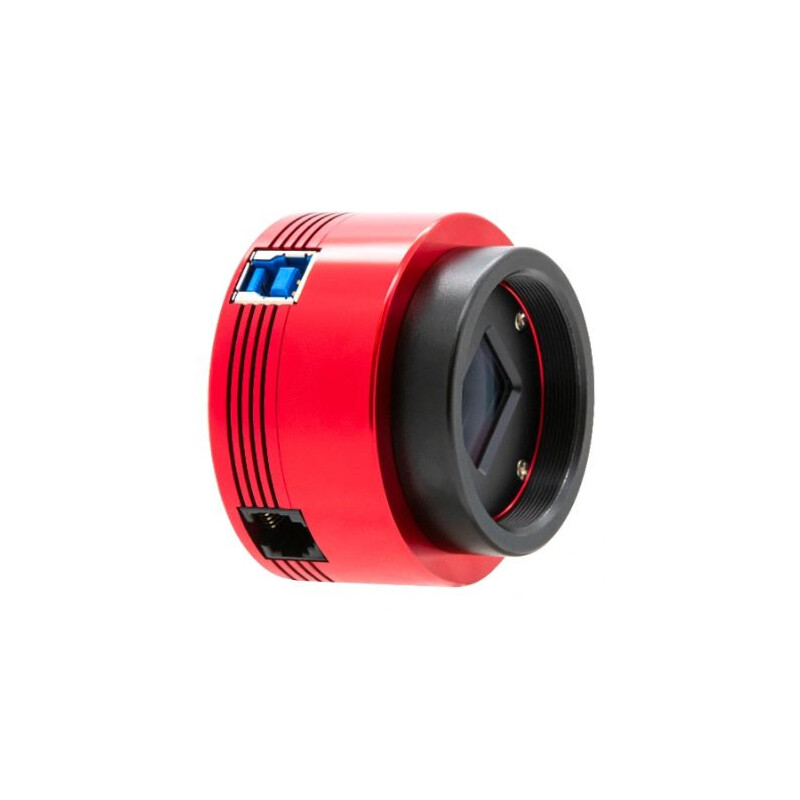

Camera ASI 585 MM Mono

$ 660.00 incl. VAT plus shipping costs
too expensive?
short-term
Product can be shipped as of 01.07.2025 + lead time
  • Very high resolution: 2.9 µm pixel size
  • Approx. 91% quantum efficiency – high sensitivity with short exposure times!
  • Passive cooling with heat dissipation
  • No amp glow

Product description

The ZWO ASI 585MM Mono camera offers a large sensor with high sensitivity, resolution and frame rate. This makes it ideal for planetary photography, as well as for solar and lunar images, and even for capturing deep sky objects.

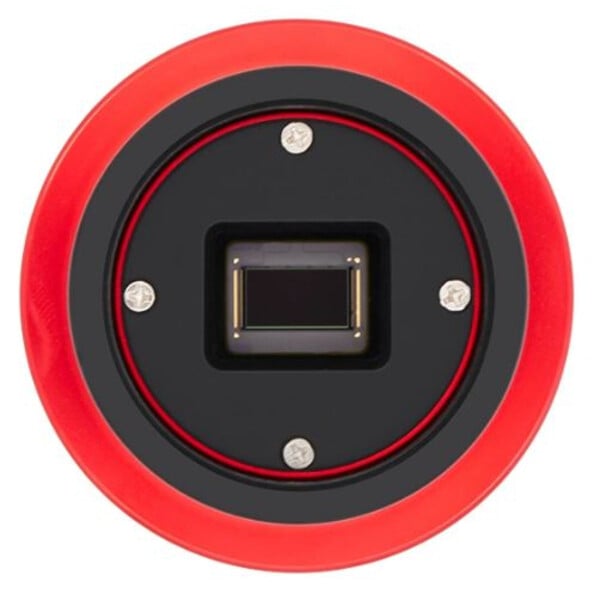

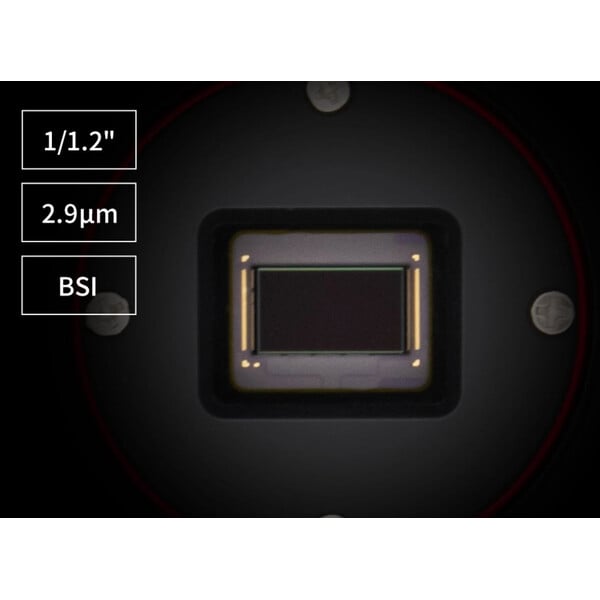

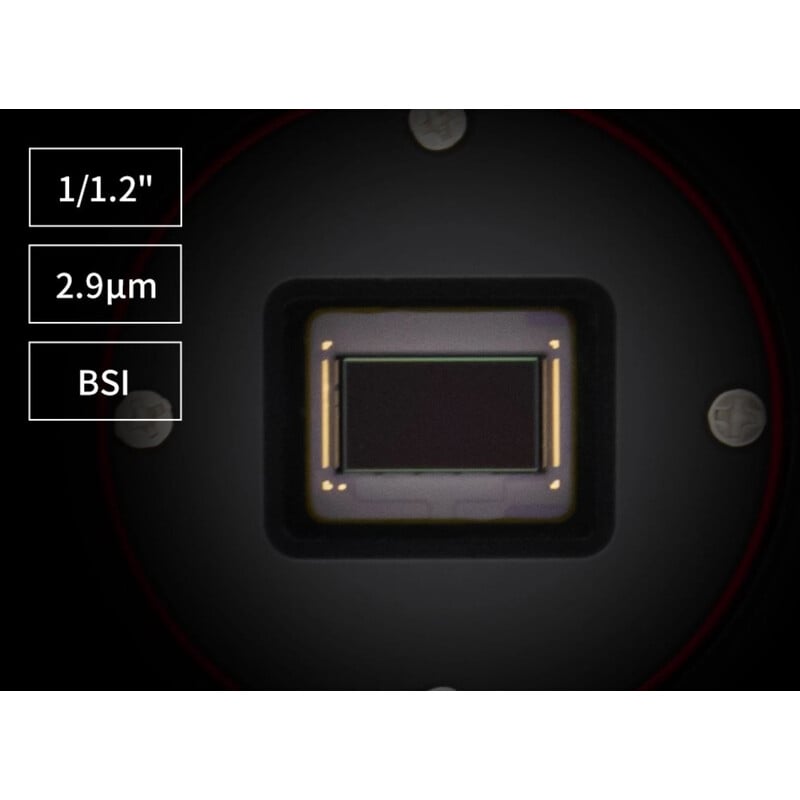

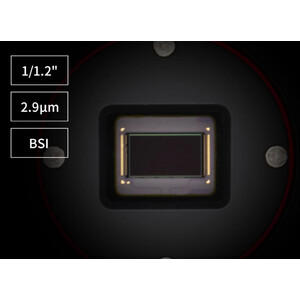

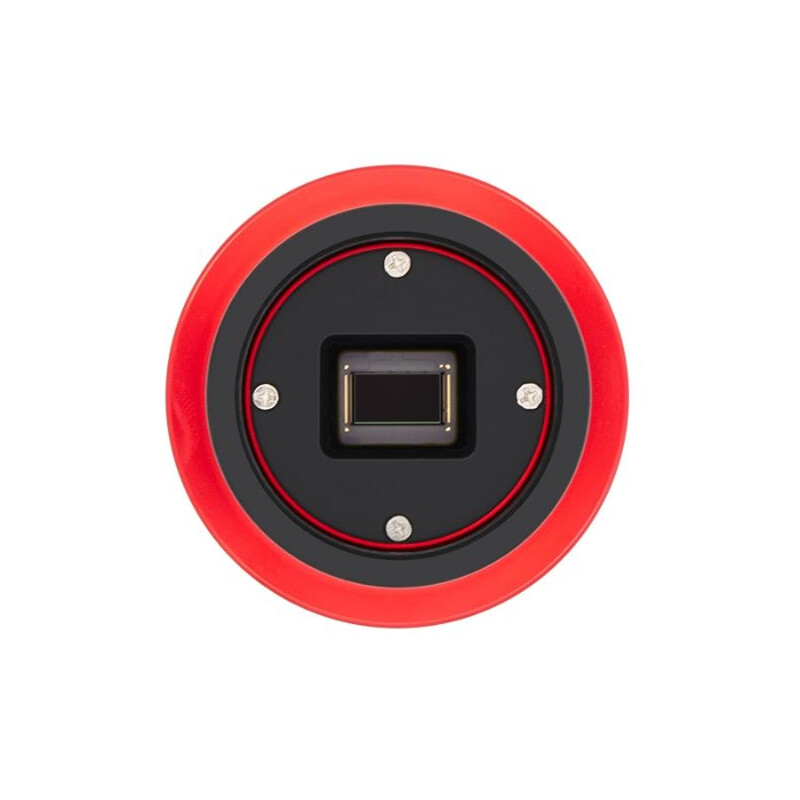

The camera is equipped with a modern Sony IMX585 sensor and impresses with its high resolution (2.9µm pixels), high frame rate and complete absence of amplifier glow (Amp Glow). This makes this camera very interesting not only for planets, the sun and the moon, but also for long exposure (deep sky photography). The sensor is large enough for many deep sky objects, even without the use of an additional corrector.

The most important areas of application for the ASI 585MM are moon and planet photography with high detail resolution, sun photography (with a suitable filter!!) with high detail resolution, long exposure of nebulae and galaxies without power-consuming cooling, infrared images to reduce the effects of seeing (resulting in a sharper luminance channel), autoguiding camera (autoguiding connection is available), as well as EAA (electronically assisted astronomy) for planets, the moon and the sun. Thanks to the fine 2.9µm pixels, you can achieve a very high resolution even with an aperture ratio of f/10 (Maksutov-Cassegrain telescopes!), which makes the use of barlow lenses unnecessary. Although this camera is uncooled (the sensor heats up during recording), the built-in PCS dissipates the heat from the sensor to the outside via a heat conduction pad. This reduces the sensor temperature by up to 15 degrees Celsius compared to cameras without PCS!

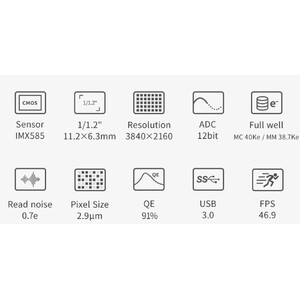

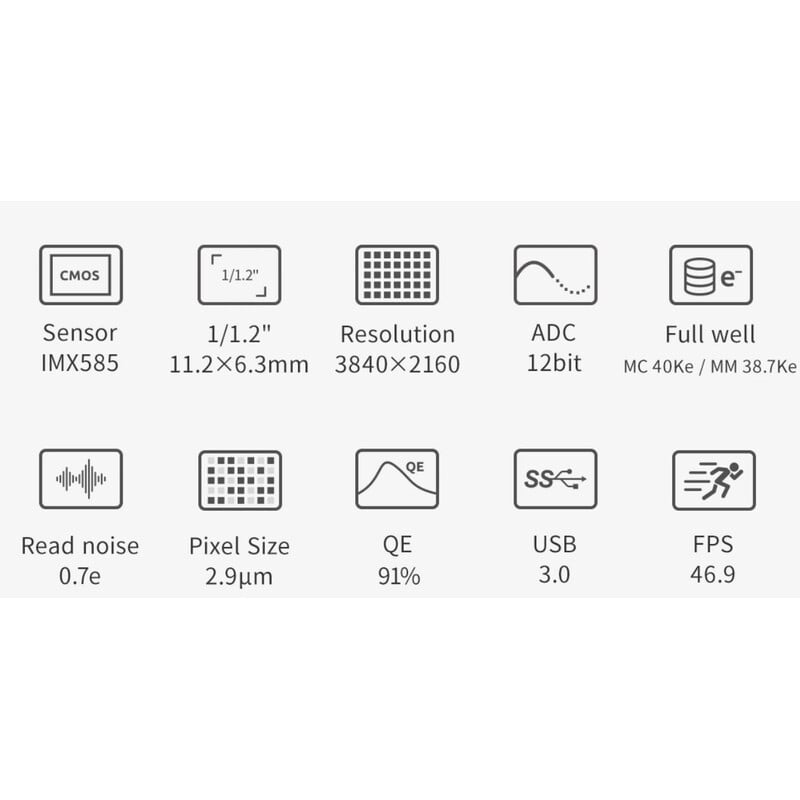

Specifications

Capacity


Sensor type
CMOS Chip
Size of chip (mm)
11,1 x 6,3
Megapixel
8,3
Pixel size
2,9
Resolution Photograph (Pixel)
3840 x 2160
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
1,25" & T2
Colour camera
no
Operating temperature
-5° bis +50°
Max. exposure time (min)
33,3
Min. exposure time
32
Images per second
47 (at full resolution)
Reading noise
0,8
Full Well Capacity
47000
Flange focal distance (mm)
17,5
Power supply
5 (via USB)
Chip - Diagonal (mm)
12,8
Quantal efficiency
91%

Equipment


Filter wheel
no

General


Weight (g)
126
Series
ASI 585
Diameter (mm)
62
Length (mm)
36

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Suzhou ZWO Co., Ltd., Moon bay road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
