Binoculars > Instruments > APM > APM-Bino > APM Binoculars 23x100 SD APO UF24 45°
Product no.: 76697

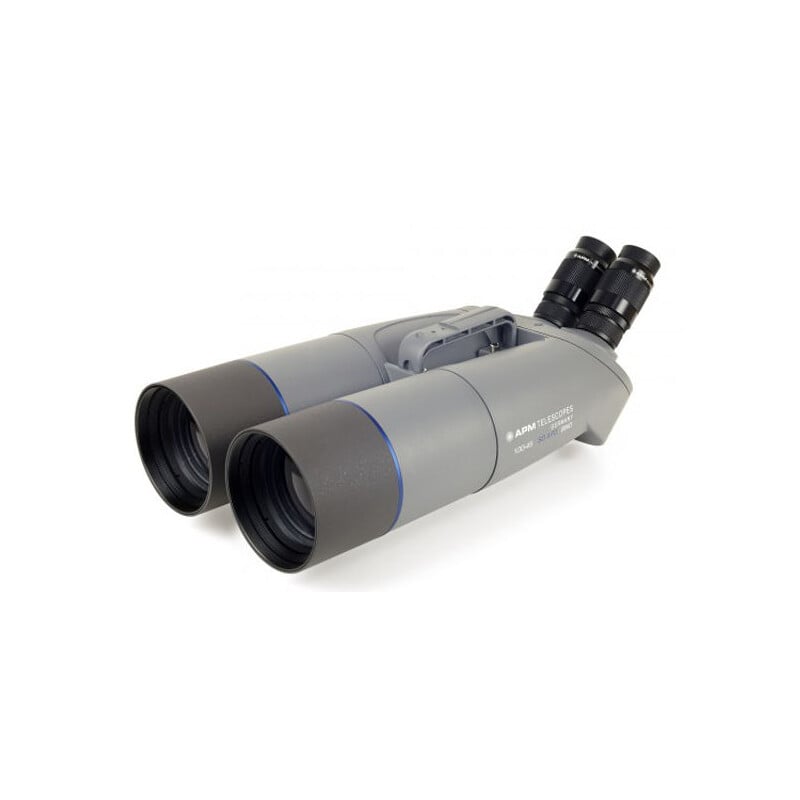

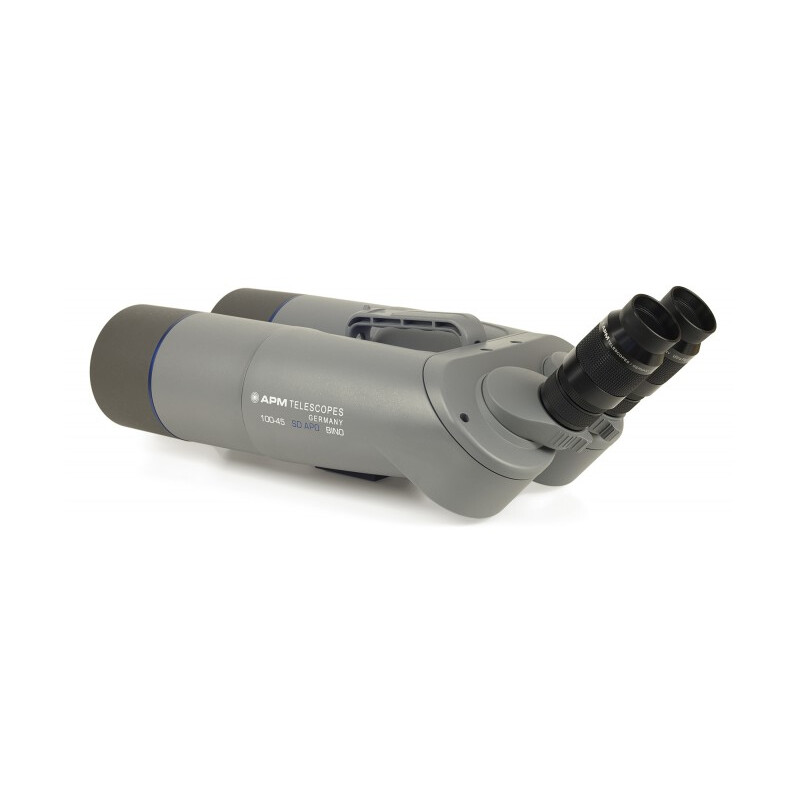

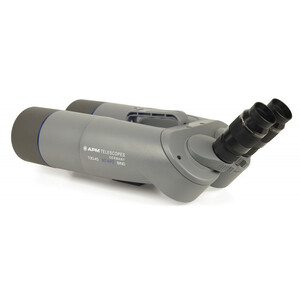

Binoculars 23x100 SD APO UF24 45°

$ 3,420.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Viewing angle: 45°
  • Binoculars with ED glass objective & BaK4 prisms
  • Lightweight and sturdy magnesium housing
  • Modern FMC coating on optics and prisms
  • Sliding dew shield

Product description

More about the series APM-Bino...

In brief:

  • Large binoculars with particularly high-quality optics
  • Full multi-coating and BAK-4 prisms
  • Lightweight but sturdy housing made from magnesium
  • Extendable dew shields
  • Interchangeable eyepieces for variable magnification

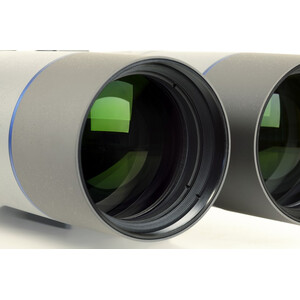

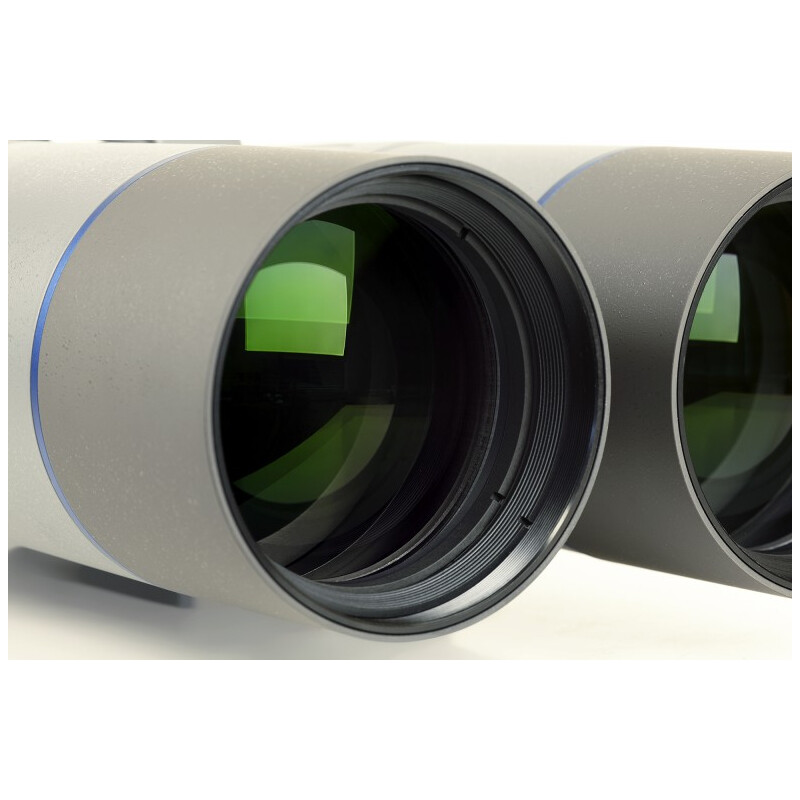

Binoculars in the FCD100 series impress with their colour-pure, high-contrast lenses. The apochromatic objectives are constructed from two lenses with an air gap, with the rear lens made from the special FCD100 glass of the same name.

Binoculars with a 100 mm aperture are universal instruments for astronomical and terrestrial observations. The large binoculars are also ideal when good transportability and a low weight are important. Thanks to their excellent optical and mechanical quality, you will enjoy many years of observation!

A 2x 100 mm aperture is sufficient for weaker objects and higher resolution. Thanks to the sensible coordination of the eyepiece focal length, you can observe great details of the moon, for example, which remain hidden in normal binoculars. Binocular observation allows the observer to look much more relaxed!

The housing is weatherproof and the stability of the magnesium housing is impressive. Extendable dew shields protect the lenses from fogging even during long observations and can serve as side light shields during the day. These binoculars naturally have a tripod connection and a sturdy carrying handle.

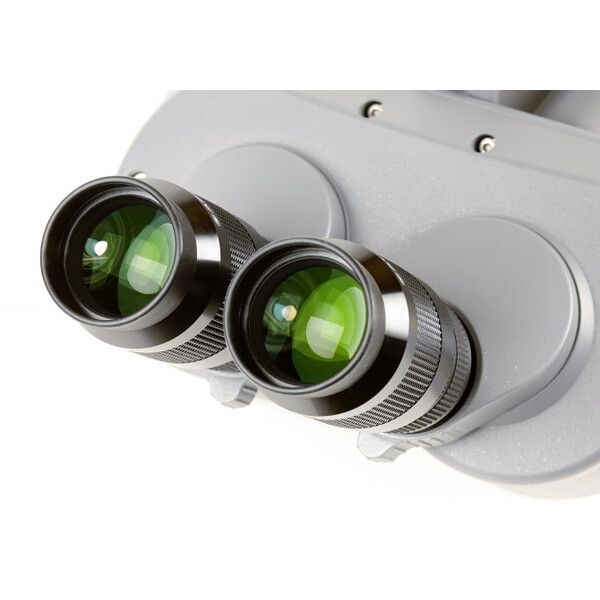

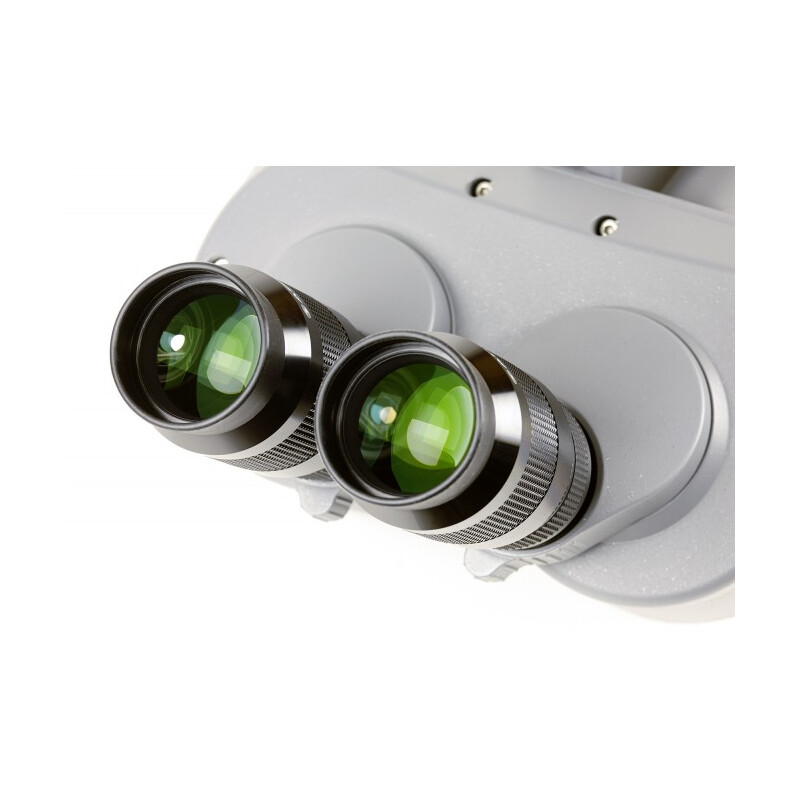

The binoculars can accommodate interchangeable eyepieces with a 1.25" barrel diameter. The Ultra Flat Field eyepieces (UF) from APM are very well suited. Different magnifications can be achieved by varying the eyepiece focal length.

The "UltraFlat Field Eyepiece features a high quality standard and a very compact design, which is designed to remove the field curvature at the edge, resulting in a flat, distortion-free image up to the edge of the visible field of view, even in very fast telesocpes.

The eyepiece has over - sized eyepiece lenses for the largest possible field of view and a high eyerelief - also suitable for spectacle wearers, the eye-rubber allow a comfortable view.

All lenses have a braod-band-multicoating (FMC) and blackened lens edges. The plug-in sleeve is equipped with a thread for "filters.

Scope of delivery:

  • 100mm FCD100 binoculars
  • 1 set of 24mm Ultra Flat Field eyepieces
  • Test report
  • Carrying handle and photo tripod adaptors
  • Cardboard packaging
  • Objective & eyepiece caps

Specifications

Capacity


Type of build
Roof
Magnification
23
Front lens diameter (mm)
100
Focal length (mm)
550
Exit pupil (mm)
4,3
Eyepiece cups
folding
Diopter-adjustment side
on both sides (Single eyepiece focusing)
Interpupillar distance (mm)
54-75
Glass material
BaK-4
Lens coating
fully, multiple
Focusing system
Single focusing
Handle
yes

Special features


Eyepieces for spectacle wearers
yes
Splash-proof
yes
Watertight
no

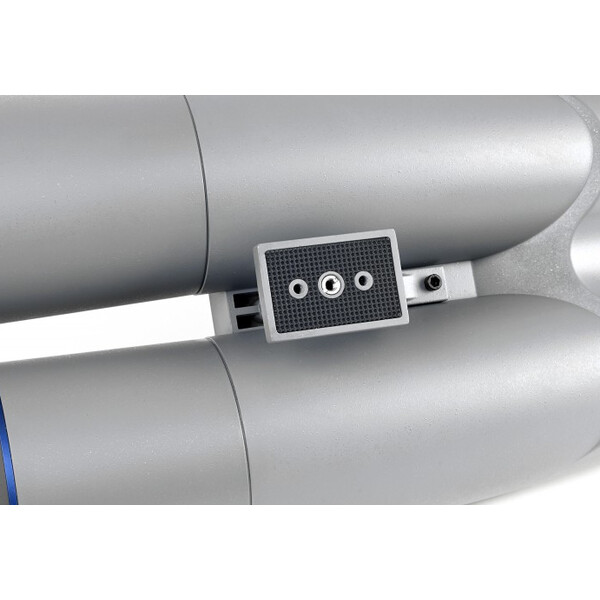

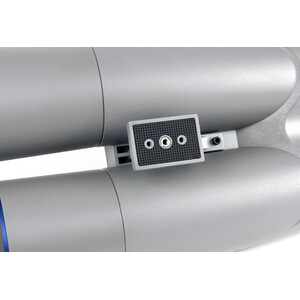

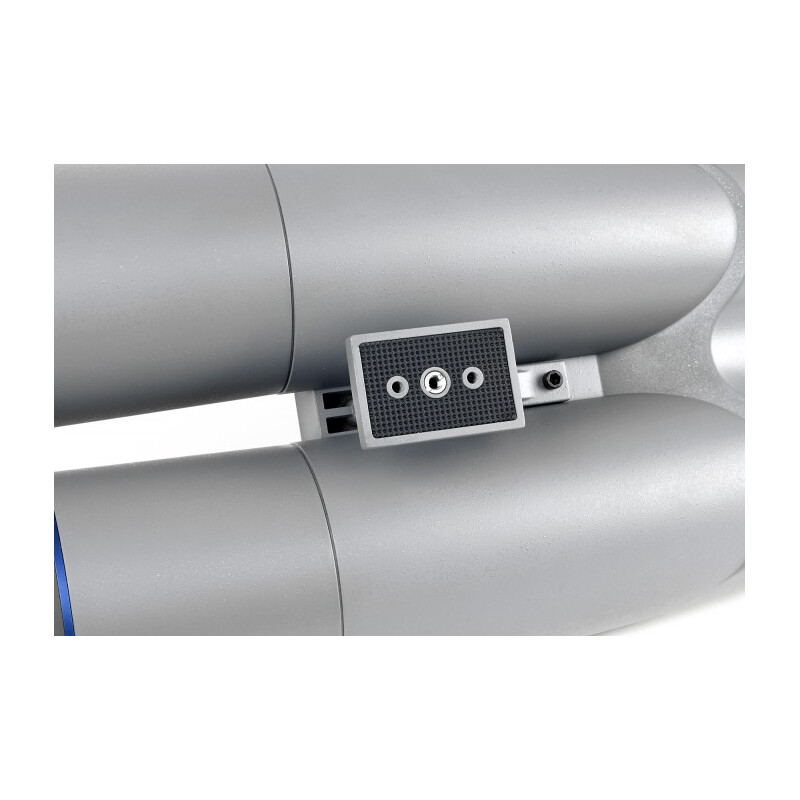

Threaded tripod connector
yes
Lens cover
yes
eyepiece cap
yes
Rangefinder
no
Compass
no
ED
yes
inert gas charge
yes
Transport cases
no

Field of view


True field of view (°)
2,8

General


Series
APM-Bino
Length (mm)
540
Width (mm)
270
Height (mm)
160
Weight (g)
6600

Area of application


Astronomy
very good
Bird watching
very good
Hunting
not recommended
Travel and sports
not recommended
Sailing
not recommended
Theatre
not recommended
