Astronomy > Telescopes > PlaneWave > PlaneWave Dall–Kirkham telescope DK 508/3454 CDK20 Astrograph L-500
Product no.: 86199

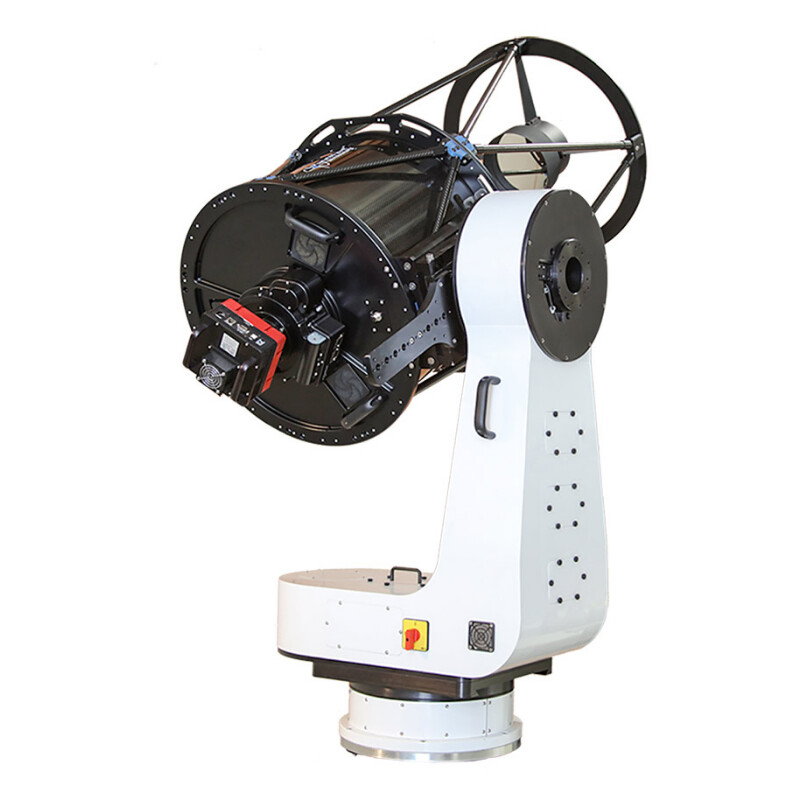

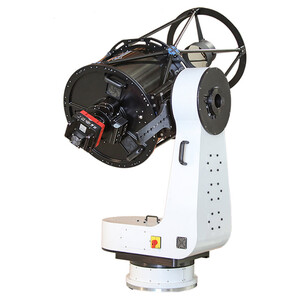

Dall–Kirkham telescope DK 508/3454 CDK20 Astrograph L-500

$ 83,600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

In brief:

  • Astrograph with quartz glass optics
  • Modified Dall-Kirkham design with fully corrected image field
  • Prepared for Delta T heater (Hedrick focuser and EFA kit sold separately)

The CDK optical design

The PlaneWave CDK layout is an optical design based on the classic Cassegrain design by Dall-Kirkham.

It was developed to accommodate the ever-increasing size of chips in digital and CCD cameras. With many other mirror optics, you quickly see off-axis aberrations such as coma and/or astigmatism; in addition, many systems suffer from image field curvature, which causes the images of stars to become increasingly blurred as they move away from the optical axis.

The image field is free of coma and astigmatism. In addition, the image field plane is absolutely flat and level across this diameter, so that stars are reproduced with the same sharpness across the entire field in the focal plane.

The CDK design offers a perfect solution to the problems mentioned above, with an excellent price-performance ratio and moderate delivery times.
It consists of:

  • an elliptically curved primary mirror
  • a spherical secondary mirror
  • and a 2-lens field corrector

All three optical elements are perfectly matched to each other to achieve the incredible image quality. The image quality is largely dependent on the seeing conditions at the location.

The quartz glass (fused silica) used is a synthetic amorphous quartz glass of the highest purity and one of the most transparent glasses available. Due to its purity, the optical and thermal properties of quartz glass are superior to other types of glass. Its transmission and homogeneity exceed those of crystalline quartz and avoid the problems of temperature instability that crystalline quartz glasses suffer from.

Fused silica has a thermal expansion coefficient six times lower than that of borosilicate glass (Pyrex). It therefore retains its shape with a very high degree of accuracy when it cools. This results in consistent optical performance and an unchanged focal point during temperature changes.

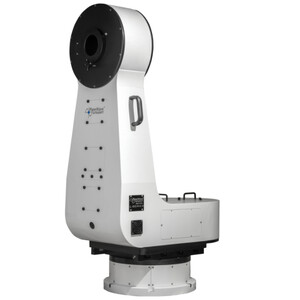

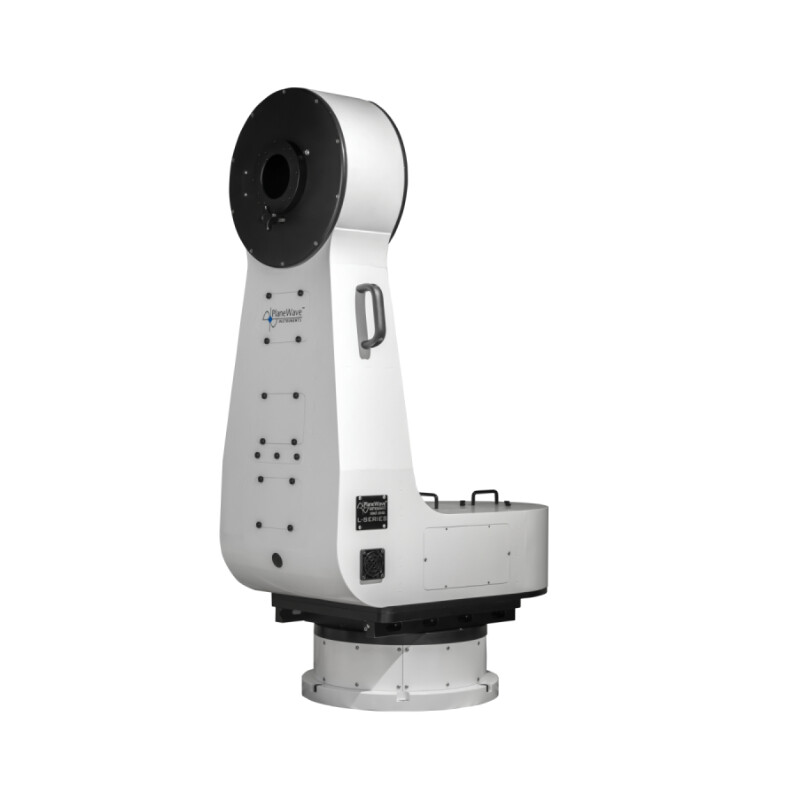

L-Series Direct Drive Mounts

The L-Series combines versatility, simplicity and affordability by packaging proven technology, such as the CDK700 and the 1-metre PW 1000 telescope used in universities around the world, into a compact, stand-alone mount.

  • The L-350, with a payload of over 45 kg, is ideal for the CDK14 and CDK12.5.
  • The L-500, with a payload of over 90 kg, is ideal for the CDK17 and CDK20.
  • The L-600 carries up to 136 kg and is ideal for the CDK24.

The mount is equipped with direct drives and high-precision encoders. The software is fully ASCOM-compatible and allows precise positioning and satellite tracking.

In Alt / Azimuth configuration, it is much more compact than a parallactic mount. This allows the movement radius of a larger telescope to be much smaller. This means that large instruments can be housed in small protective structures, saving a lot of money on the dome or building. Unlike parallactic mounts, there are no meridian flips and no large, protruding counterweights. The Alt/Az mode is more intuitive to use and there is no need for polar alignment.

Scope of delivery:

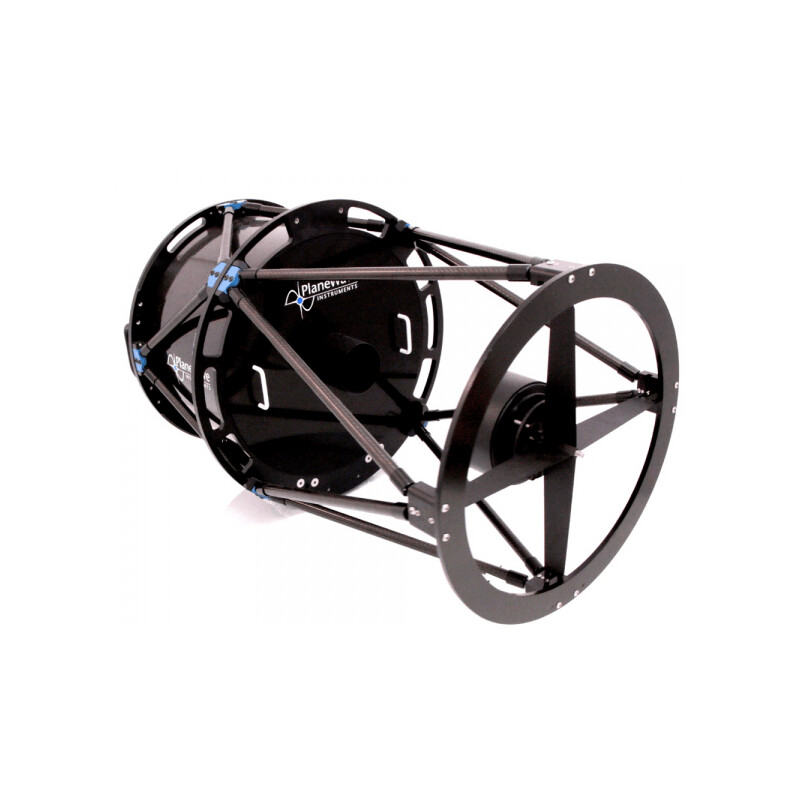

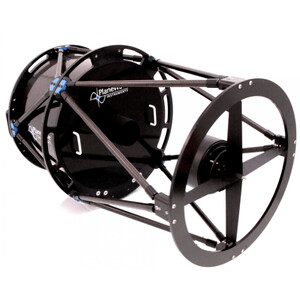

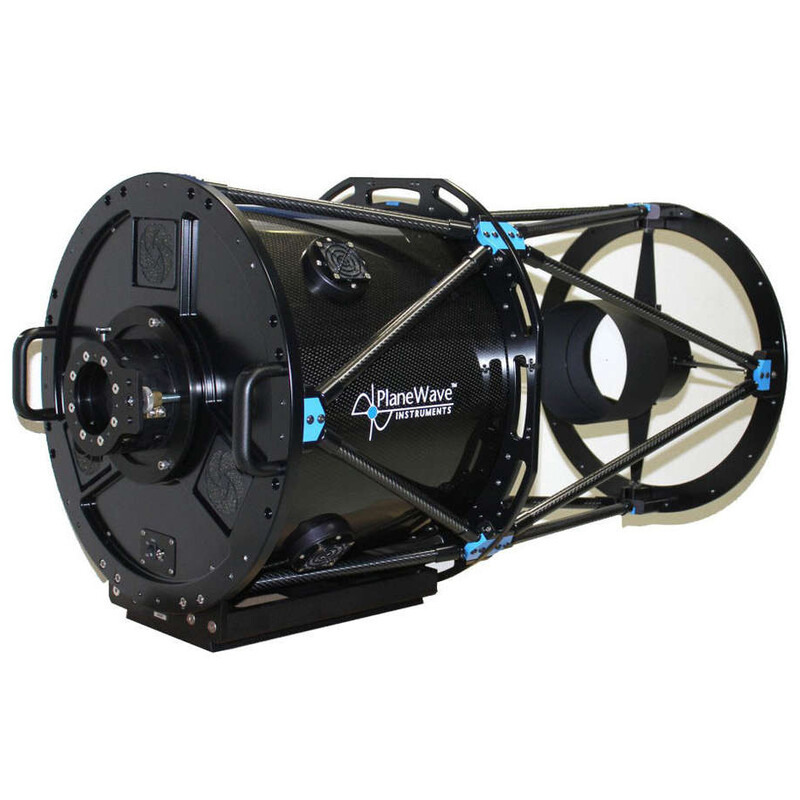

CDK 20

  • Built-in heating elements to prevent condensation - The heating elements on the primary and secondary mirrors require the separately available Delta-T Controller #1329110 for PlaneWave telescopes with pre-installed wiring for heating.
  • OTA cover - To protect the primary mirror and the inside of the optical tube
  • Flash drive - Contains software and instructions for collimation and primary-secondary mirror alignment
  • Tool kit (5812A35) - Standard hex keys (only for orders from Europe)
  • Soft cover for the secondary mirror
  • 12V AC adaptors

L-500

  • Six 3/8-16 x ¼" hexagon socket screws for screwing the mount to the column or polar wedges
  • Six 3/8-16 x ¼" washers
  • One extension bolt for the RA axis for polar alignment with the equatorial wedges
  • Planewave Saddle Dovetail Clamp - comes standard with L-500 or L-600 mounts for attaching CDK17, CDK20 or CDK24 OTAs.
  • A 16' (4.8 m) USB cable – for connecting the mount to the observatory's control computer
  • One 120V AC power cable – to power the mount
  • A standard set of keys – for tightening the screws on the mount
  • Flash drive – Contains the PWI4 software for controlling the mount and installation instructions

Specifications

Optics


Type
Reflector
Type of build
Dall–Kirkham telescope
Aperture (mm)
508
Focal length (mm)
3454
Aperture ratio (f/)
6,8
Resolving capacity
0,27
Limit value (mag)
15,3
Light gathering capacity
5270
Max. useful magnification
1016
Tube weight (kg)
64
Tube length (mm)
1194
Tube material
Carbon
Tube construction
Truss Tube
Fully Corrected Field (mm)
52

Reflector


Primary mirror - Diameter (mm)
508
Secondary mirror obstruction
39
Ventilation for central mirror
yes
Secondary Mirror Heating
yes
Primary mirror - Material
Quartz
Secondary mirror material
Quartz
Main mirror´s construction
elliptical
secondary mirror design
spherical
reflectivity
96
aluminising
Aluminium

Focuser


Type of build
without
Backfocus (mm)
147

Mount


Type of build
L-500
Mounting type
Azimuthal
Load capacity (kg)
91
Weight (kg)
100
GoTo control
yes
Cable-guide
internal
Drive type
Other

Included accessories


Corrector
integrated
Prism rail
8"
Carrying handle
yes
Tube clamps
yes

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for


Beginners
no
Advanced
no
Observatories
yes

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de
