Astronomy > Telescopes > TS Optics > Imaging Star > TS Optics Apochromatic refractor AP 102/520 6-Element-Flatfield Imaging Star OTA
Product no.: 51022

Apochromatic refractor AP 102/520 6-Element-Flatfield Imaging Star OTA

$ 1,870.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Similar to illustration: Delivery without prism rail

Imaging Star Apo refractors have been developed for dedicated astrophotographers. The objective and corrector are optimally matched for best results on the axis and in the field.

This Apo has a very high light intensity with f/5. The Apo offers a well-corrected and illuminated image field with a diameter of approx. 42 mm. Thanks to the moderate exposure times, noise can be kept to a minimum, which is particularly beneficial for owners of uncooled DSLR cameras. Of course, the Apo is also suitable for CCD cameras.

  • The camera is connected via the M48x0.75 thread or the M68 thread. The distance from the M48 thread to the camera sensor is exactly 53 millimetres. The distance from the M68 thread to the camera sensor is 78 millimetres. This gives you enough space for individual adaptations and for all commercially available cameras.

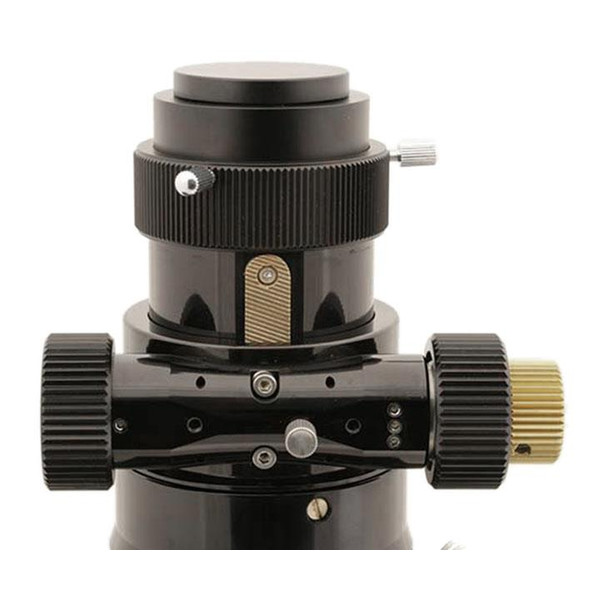

  • The newly designed 2.5" focuser holds even heavy cameras without tilting. It has been specially designed for photographic use. Adjustment is made via a rack and pinion mechanism without slipping. The knurled screw at the base locks the adjustment and thus guarantees that the focus position is held perfectly for hours. You can also fix the position of the focuser tube using a knurled screw on the upper side. The focuser holds the 3-element corrector and has an M68x1 ZEISS level external thread on the camera side. The reduction to M48x0.75 is also attached to this thread.
  • Due to the relatively short distance between the corrector and the focus, the Apo is not suitable for use with normal 1.25" or 2" diagonal mirrors. Nevertheless, the Apo offers impressive visual performance thanks to its large corrected image field. Please use the special diagonal mirror from the "Recommended Accessories" section with item number 52336.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
102
Focal length (mm)
520
Aperture ratio (f/)
5,1
Resolving capacity
1,13
Limit value (mag)
11,8
Light gathering capacity
210
Max. useful magnification
204
Tube construction
Full tube
lens design
Triplet

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Corrector
integrated
Prism rail
without
Tube clamps
yes
Finder scope
no
Dew Shield
yes
Transport cases
yes
Deviating optics
no

General


Series
Imaging Star

Area of application


Astrophotography
yes (very good)
Nature Observation
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (30)
Diagonal mirror

TS Optics 1.25", mirror star diagonal for Imaging Star apochromats

$ 159.00*
Astronomy > Eyepieces (9)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (9)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astronomy > Other (1)

TS Optics Losmandy-style prism rail, 180 mm

$ 56.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

TS Optics Apochromatic refractor AP 102/520 6-Element-Flatfield Imaging Star OTA

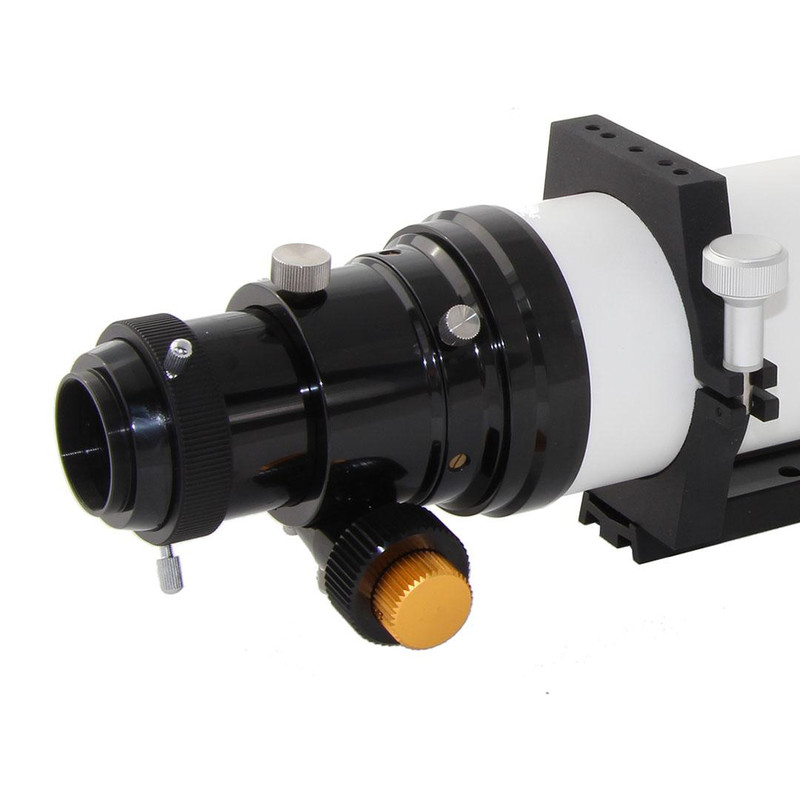

Drawtube
TS Optics Apochromatic refractor AP 102/520 6-Element-Flatfield Imaging Star OTA

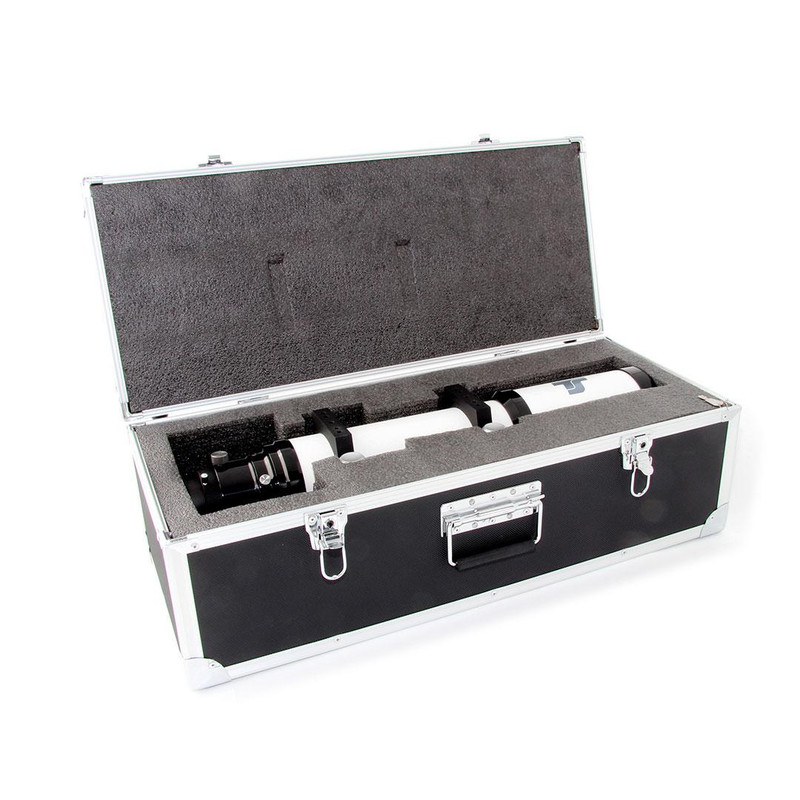

Transport cases
