Astronomy > Telescopes > Vixen > SXD2 > Vixen Telescope N 200/800 R200SS Sphinx SXD2 Starbook Ten GoTo
Product no.: 75611

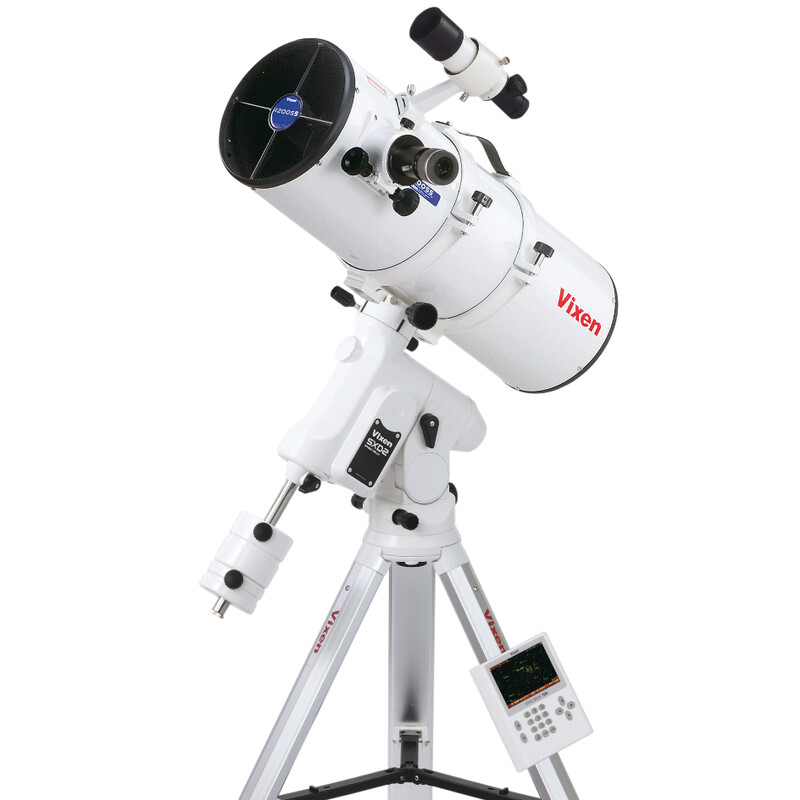

Telescope N 200/800 R200SS Sphinx SXD2 Starbook Ten GoTo

$ 5,800.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

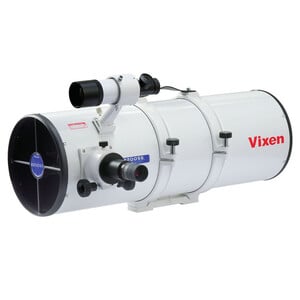

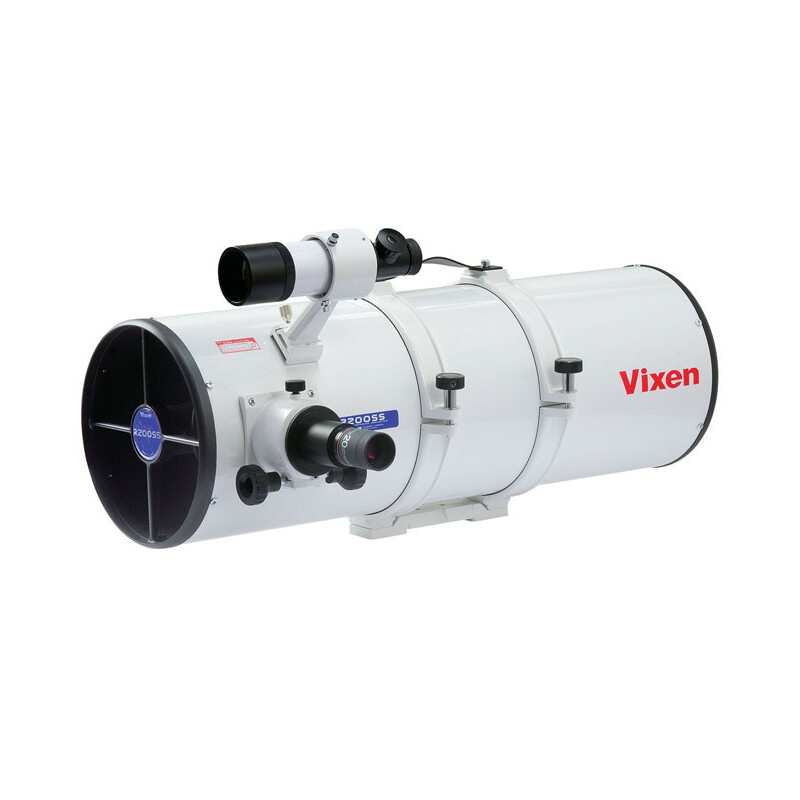

Vixen R200SS

The remarkably fast 200mm (8") f/4 parabolic primary mirror of the Vixen R200SS Newtonian reflector gives extremely sharp images with no chromatic aberration. The use of state-of-the-art coating technology yields the ideal surface for its f/4 primary mirror. The visual observer will enjoy wide views of deep sky objects. Actual groups of nebula or clusters can be viewed at the same time with this instrument.

The telescope's large aperture and compact body make it ideally suited for astrophotography of nebulae, star clusters and comets.

Aluminium vacuum coating system:

Vixen has developed a unique aluminium vacuum coating system which creates extremely precise mirror surfaces. This revolutionary system allows the controlled coating of the primary mirror and so achieves a very high degree of accuracy. This coating is used with both the VC200L, as well as the R200SS.

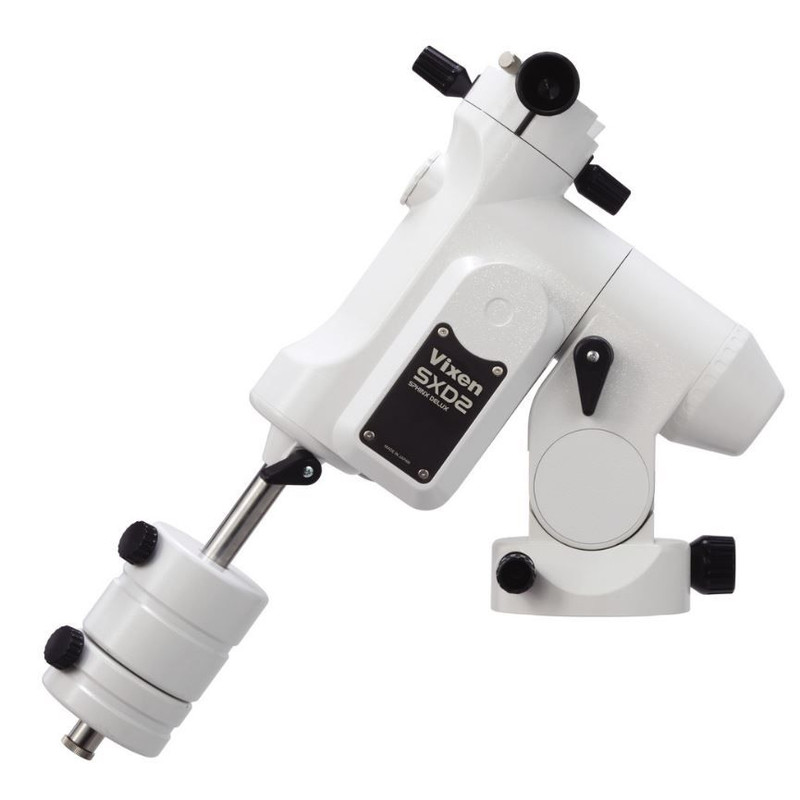

With the Sphinx Deluxe 2 and the new hand control, Vixen raises the legendary Sphinx range of mounts to the next level.

The result is a mount for very demanding observers and astro-photographers!

With the same precision stepper motors as in the very best Vixen models, the SXD2 brings a new level of performance for mounts of this size. The SXD2 tracking is quieter and smoother, and the increased precision of the motors enables enhanced performance for longer astrophotography exposures times.

This makes the SXD2 better than its predecessors and many other mounts:

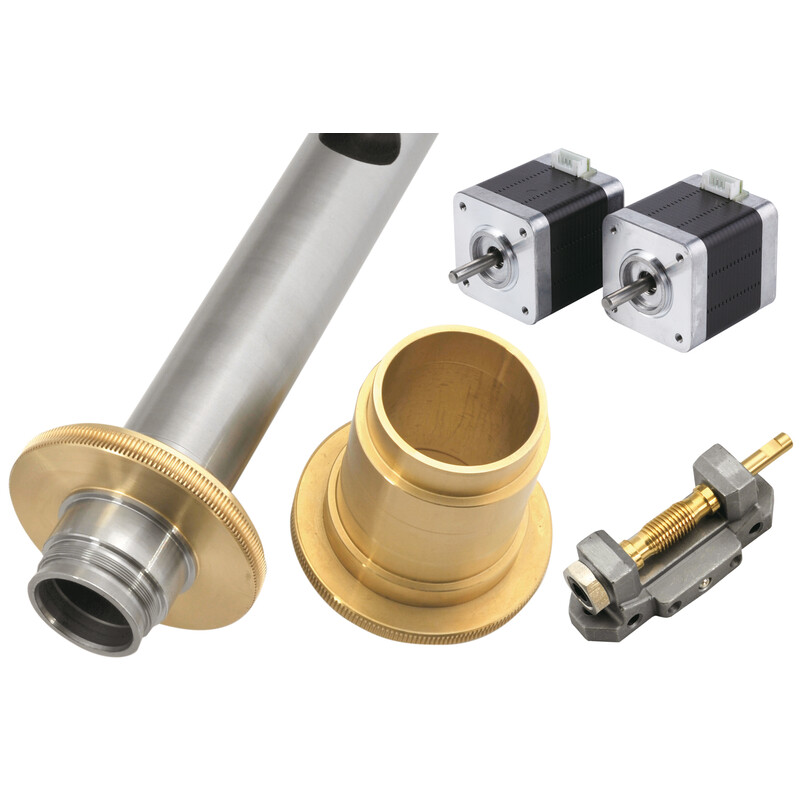

  • Precision stepper motors and Micro-Step Motion Control System: The heart of the SXD2 are the precision stepper motors that offer better performance and response than previous models. The Micro-Step Motion Control System has powerful yet very smooth drive properties which are demonstrated both in fine movements as well as in high-speed pans.
  • Built-in bearings: The bearings of the R.A. and DEC. axes and the screw gear shafts have been considerably improved so that the burden on the motors is reduced. As a result, the movement of the motors is much smoother than in previous models.
  • More robust R.A. and DEC. shafts: Highly precise and thick R.A. and Dec steel shafts increase the robustness of the SXD2 mount. High precision worm gears:
  • High-precision processing technologies eliminate faults in the worm gear. The edges of the two worm screws and worm gears are exceptionally smooth and so are extremely precise.
  • Declination axis is used as a counterweight: The solid drive components are located in the lower part of the declination axis, so that the center of gravity of the SXD2 lies under the crossing point of the R.A. and Dec.

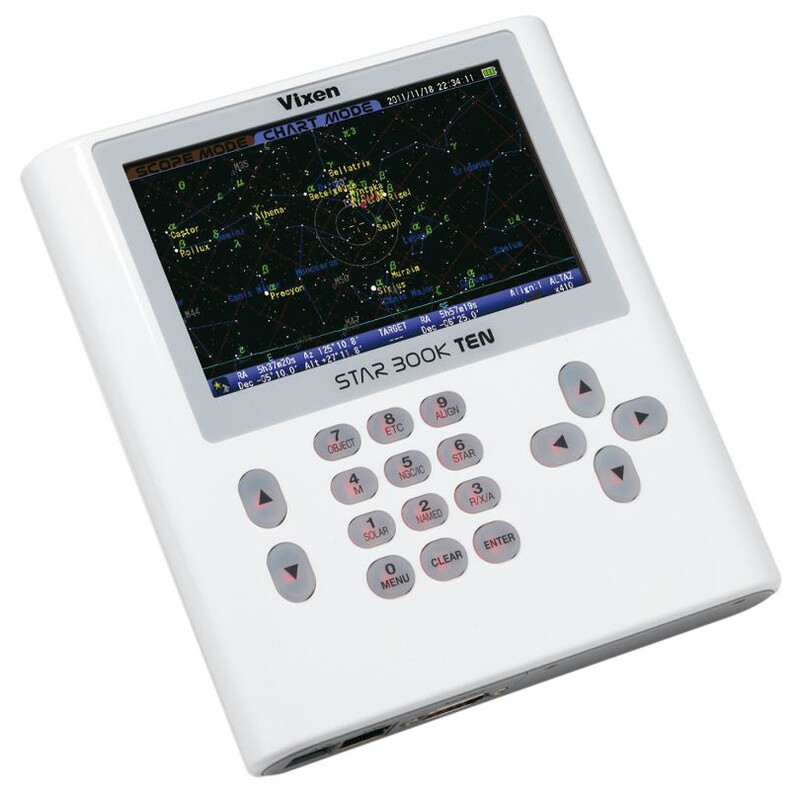

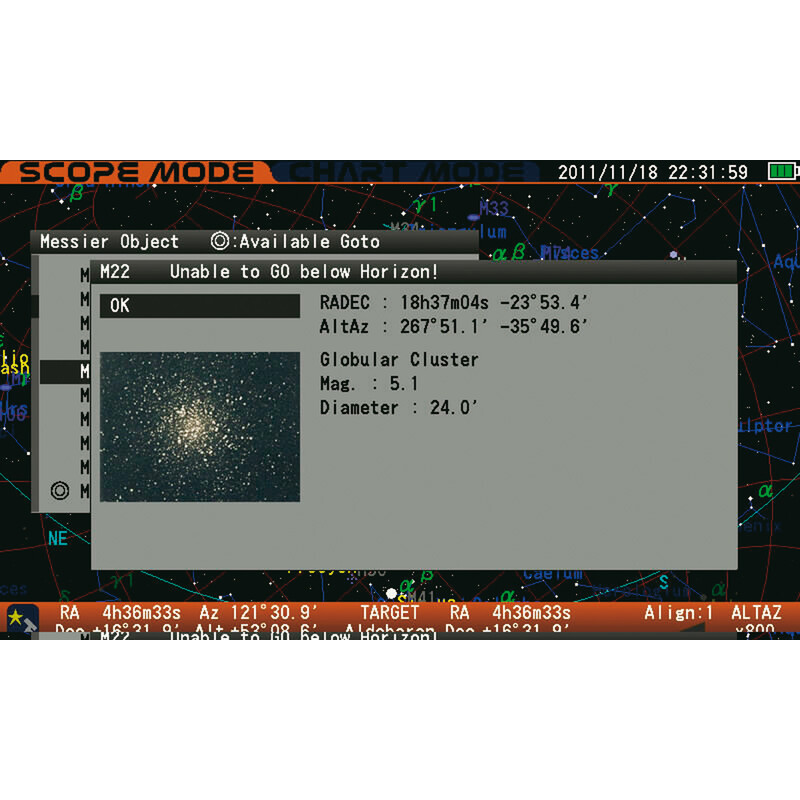

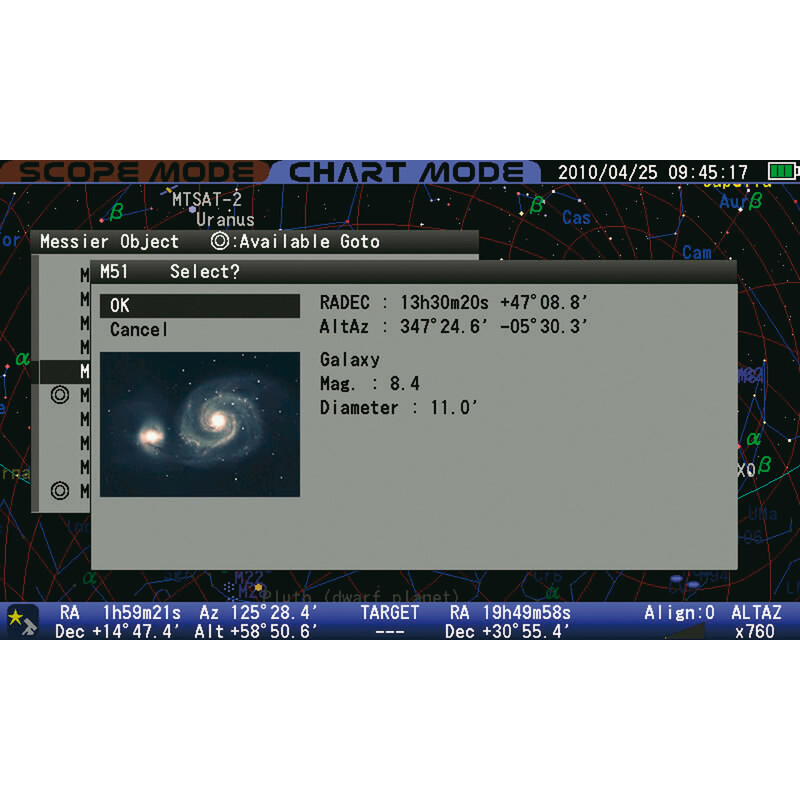

The SDX2 mount is supplied complete with the new Star Book Ten control and can be operated either manually or by computer.

The Star Book Ten controller is available for purchase as a standalone item only to upgrade the SX2 mount. It is included as standard with the SXD2, SXP and AXD mounts and is not backwards compatible with the Star Book controller supplied with Vixen’s previous generation SX and Atlux mounts.

SX-HAL130 aluminium tripod: Strong aluminium section legs and a large receiving area for SX and SXD mounts ensure very high torsional rigidity. This result can be seen immediately when the tripod is used for astrophotography - vibration becomes a thing of the past. For the taller among us, the height adjustability of 81 to 130cm really comes into its own. With a weight of only 5.5 kg, it is wonderful for use on excursions.

Made in Japan!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
200
Focal length (mm)
800
Aperture ratio (f/)
4
Resolving capacity
0,58
Limit value (mag)
13,3
Light gathering capacity
816
Max. useful magnification
400
Tube weight (kg)
5,3
tube diameter (mm)
232
Tube length (mm)
700
Tube material
Aluminium
Coating
FMC
Tube construction
Full tube

Reflector


Main mirror´s construction
parabolic
secondary mirror design
Plan
Ventilation for central mirror
no
Adjustable
yes
aluminising
Aluminium

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
1.25
Connecting threaded socket (camera-side)
T2 & M60
Backfocus (mm)
72,5
Gear reduction
without
Rotating
no

Mount


Type of build
Sphinx
Mounting type
Equatorial
Mounting saddle
Vixen-Style
Motors
Stepper motors
Polar elevation setting (°)
0-70
Load capacity (kg)
15
Weight (kg)
8,8
GoTo control
yes
Power supply
12

GoTo control


Database
272.000
GPS
no
WIFI
no
Software
Starbook Ten
PEC correction
yes
with hand paddle
yes
GoTo Language
multilingual

Tripod


Type
Tripod
Accessory plate
no
Max. tripod height (cm)
130
Weight (kg)
5,5
Material
Aluminium

Included accessories


1.25'' eyepieces
20mm, 5mm
Finder scope
7x50
Battery compartment
no
Counterweight (piece)
2
Corrector
without
Polar finder scope <p>
yes
Prism rail
Vixen-Style
Carrying handle
yes
Power pack
no
Tube clamps
yes
cigarette lighter socket
yes

General


Series
SXD2
Total weight (kg)
27,9

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
yes
Observatories
no
