Astronomy > Telescopes > ZWO > ZWO Apochromatic refractor AP 107/749 FF107
Product no.: 87885

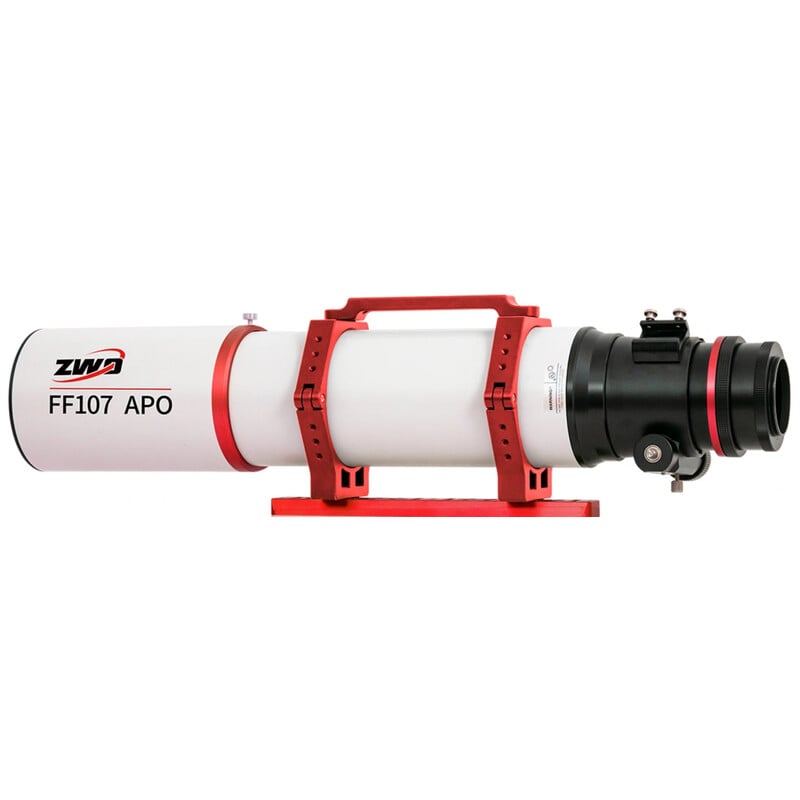

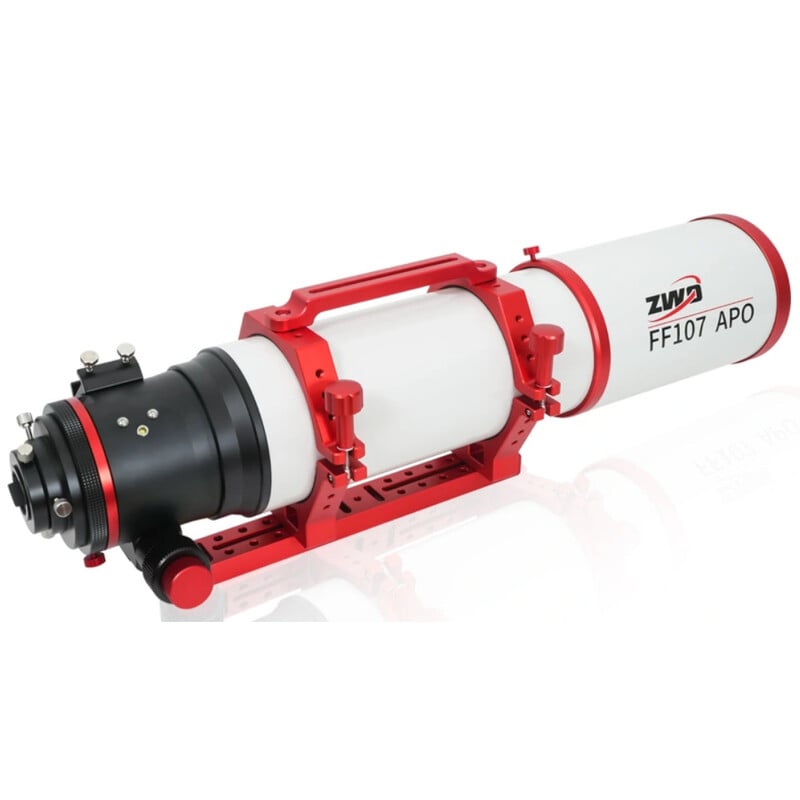

Apochromatic refractor AP 107/749 FF107

$ 2,540.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Quadruplet apochromat with two ED lenses
  • Integrated high-quality corrector
  • Corrected image circle: 44 millimetres

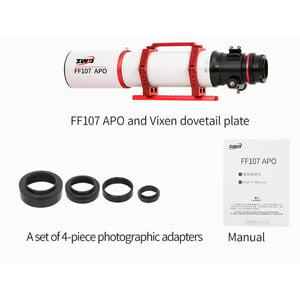

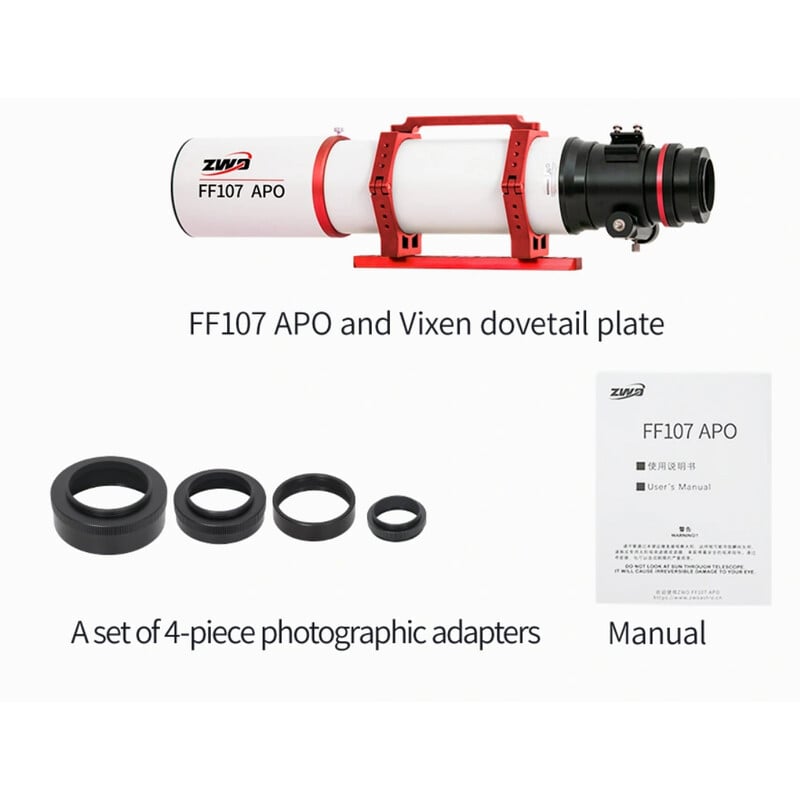

  • Includes four camera adaptors
  • Dream device for visual use and astrophotography at the highest level

Product description

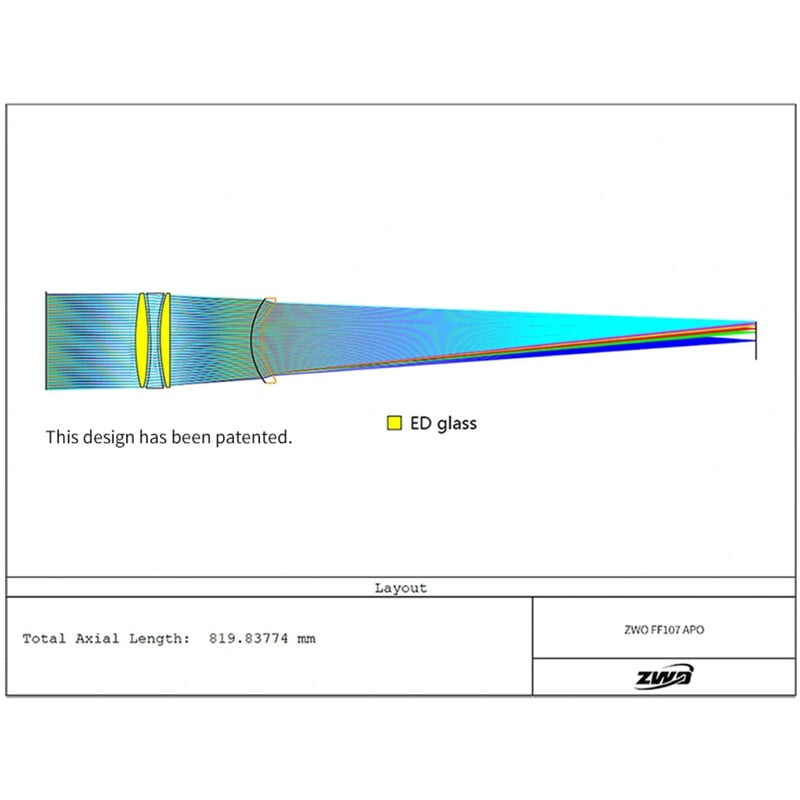

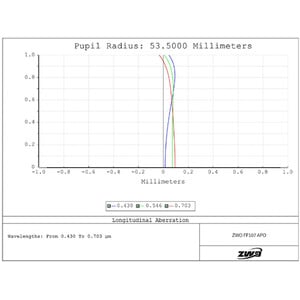

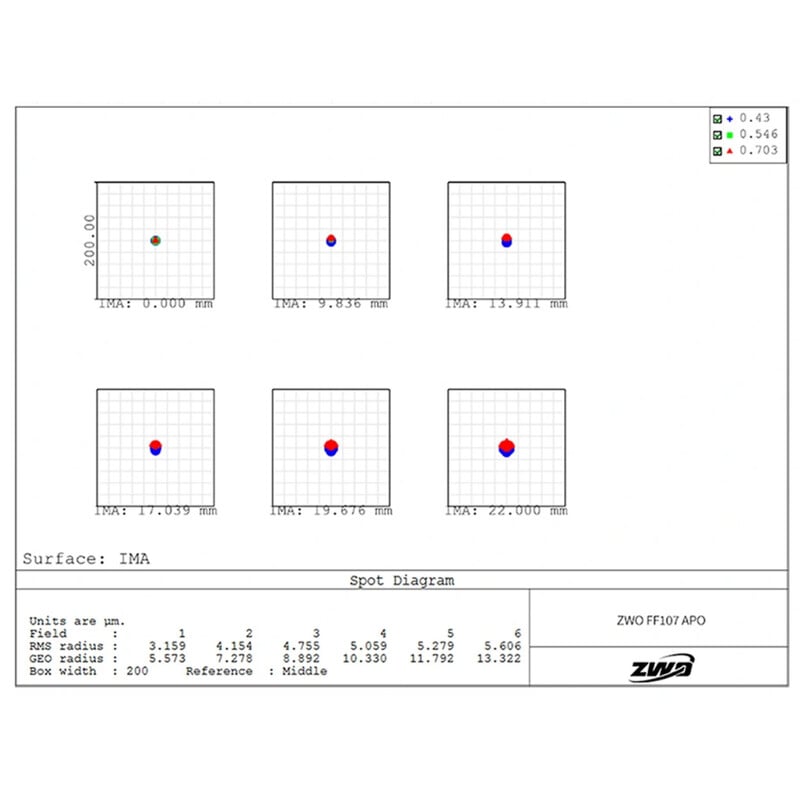

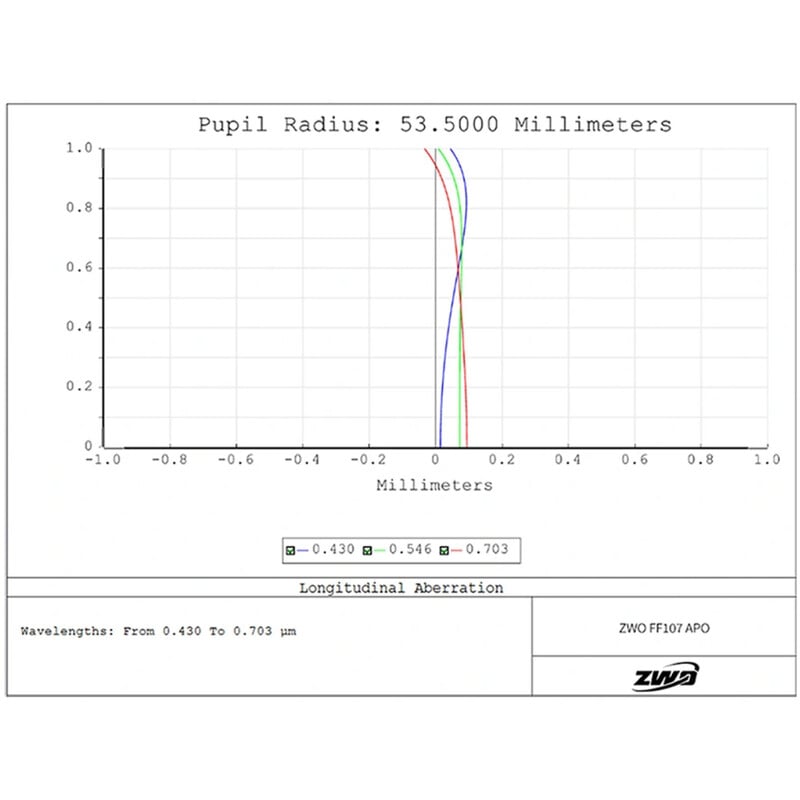

The ZWO FF107 APO is a quadruplet apochromat that has been specially developed for the high demands of astrophotography, but is also ideal for visual observation. Its optical design consists of four lens elements, including two ED glasses with particularly low dispersion. This combination ensures excellent colour correction, razor-sharp stars right to the edge of the 44-millimetre image circle and a completely flat image field – without the need for an additional flattener.

With a 107 mm aperture and 740 mm focal length, the system offers an ideal balance between detail resolution and image field size.

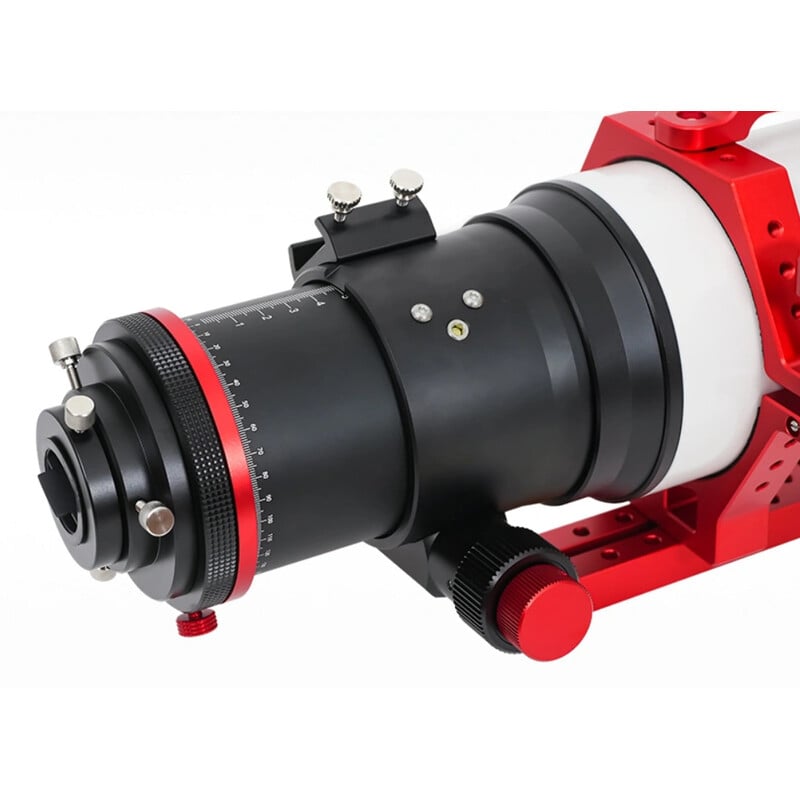

The robust 3.4" focuser with 360° rotator enables precise focusing and flexible adjustments to different cameras.

Precise CNC manufacturing and a compact design make the FF107 APO the perfect lens for astrophotographers who value quality and excellence.

Self-flattening design You do not need an additional flattener. There is also no need to maintain a specific back focus. You can simply connect any accessories you want, as long as they come into focus. For visual observation, a focus length of 120 mm is available for diagonal mirrors or other accessories.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
107
Focal length (mm)
749
Aperture ratio (f/)
7
Resolving capacity
1,29
Limit value (mag)
11,9
Light gathering capacity
230
Max. useful magnification
214
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Quadruplet
Coating
FMC
Fully Corrected Field (mm)
44

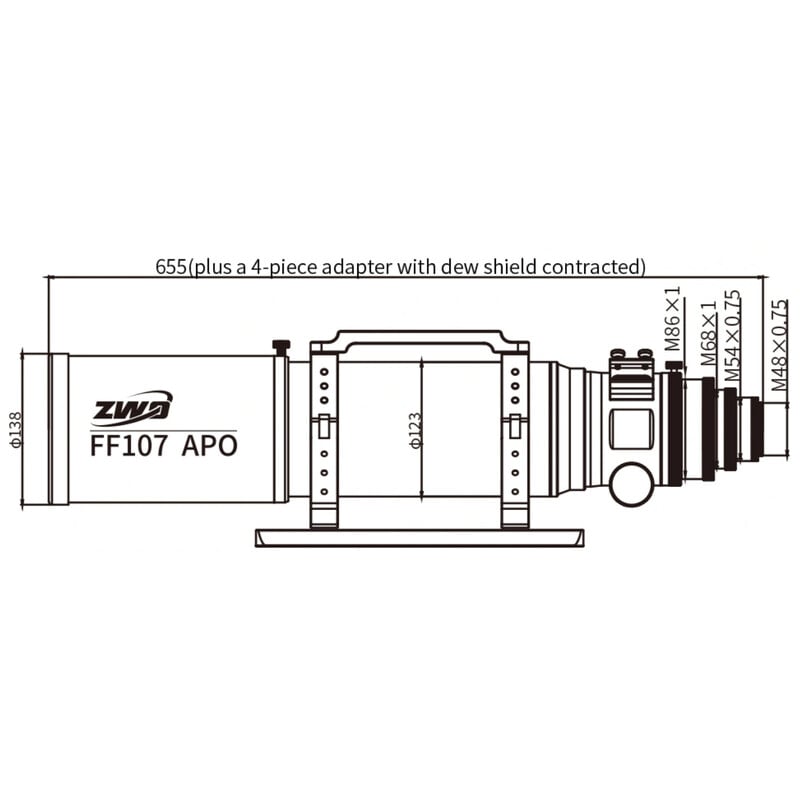

tube diameter (mm)
123
dew cap diameter (mm)
138

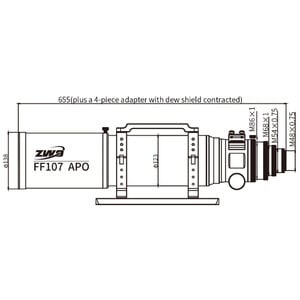

Carrying length (mm)
655
Tube weight (kg)
6,9
Tube material
Aluminium

Focuser


Type of build
rack and pinion
Gear reduction
1:10 fine focusing
Rotating
yes
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48x0.75
Adjustment range (mm)
105

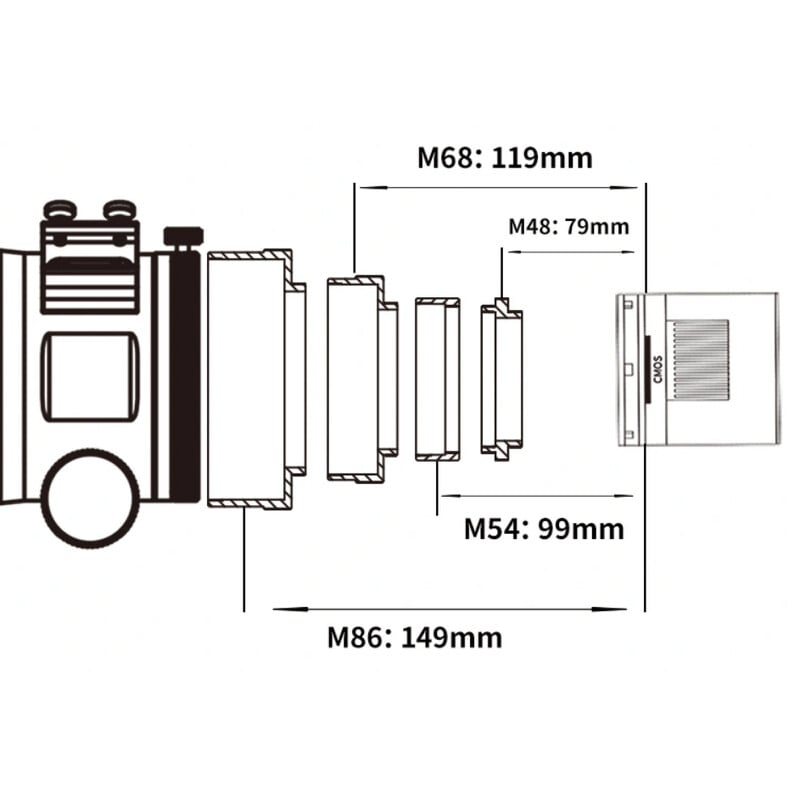

Backfocus (mm)
79 - 149 (Depending on the adapter)
Ring clamp
yes
Free aperture (mm)
86

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Prism rail
Vixen-Style
Tube clamps
yes
Dew Shield
yes
Transport cases
no
Deviating optics
no
Finder scope
no
Carrying handle
yes
finder base
Vixen/Skywatcher Level
Corrector
integrated
Eyepiece adaptor
1,25" & 2"

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
not recommended (Only with optional Amici prism)
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no
