Product no.: 83200

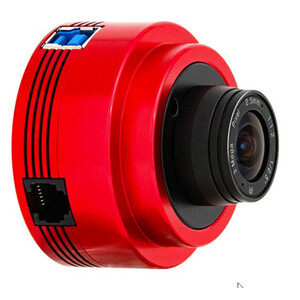

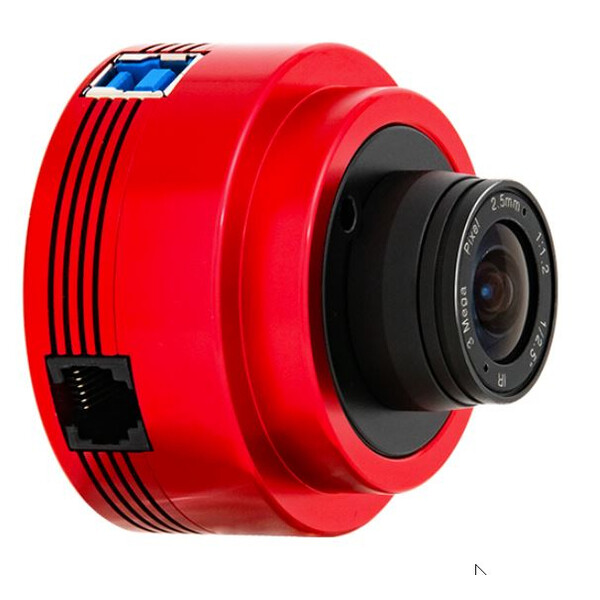

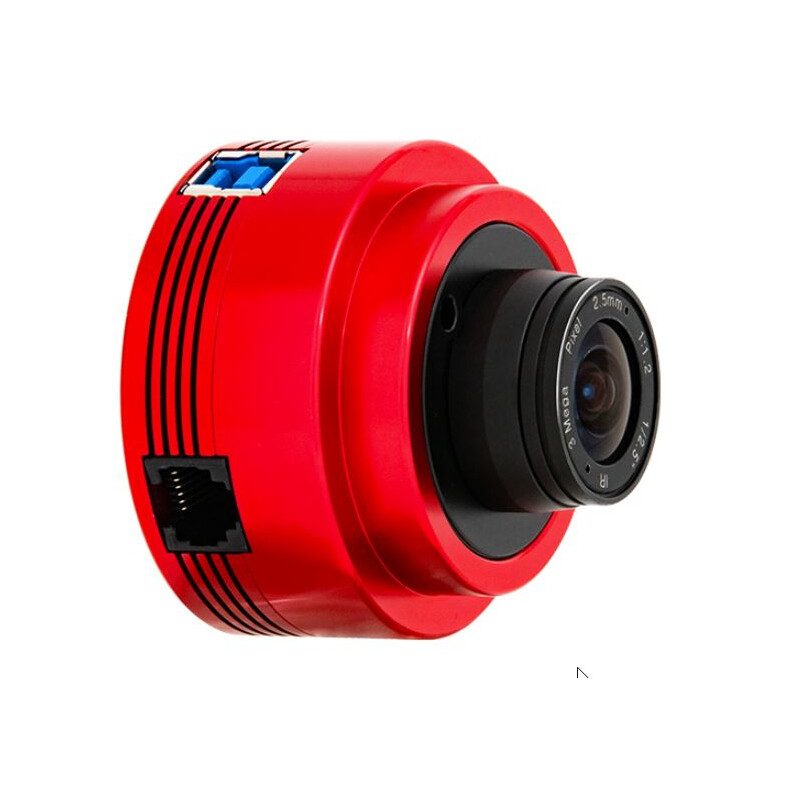

Camera ASI 678 MM Mono

RRP: $ 530.00 Our price:
$ 442.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Extremely high resolution: 2.0 µm pixels
  • Very low readout noise (from 0.6 e-)
  • USB 3.0
  • Monochromatic camera for even greater sharpness

Product description

This uncooled CMOS camera offers very high resolution and is suitable for moon and planet photography, as well as for deep sky photography to a limited extent.

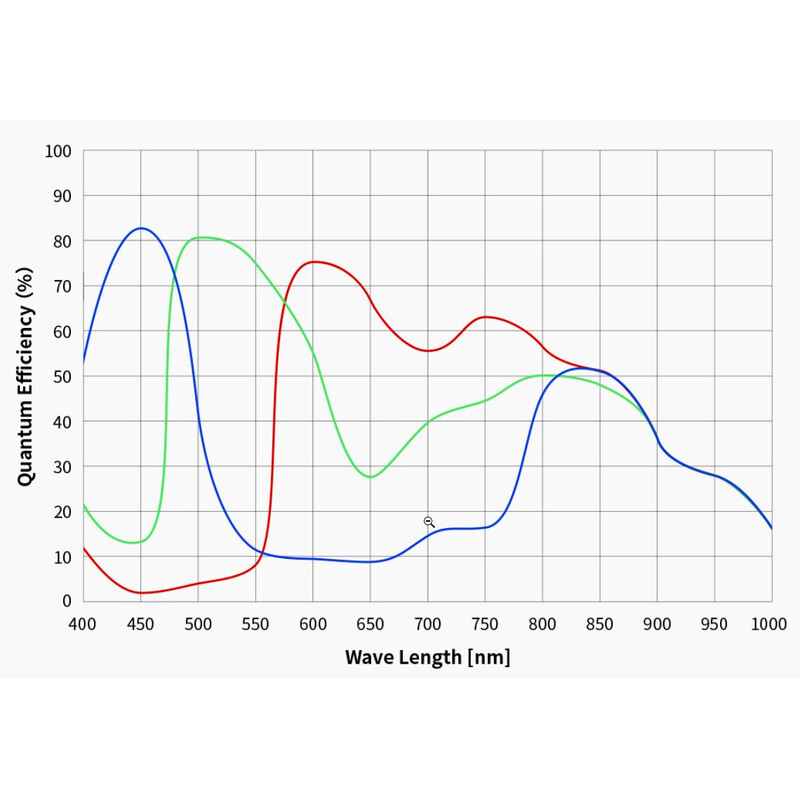

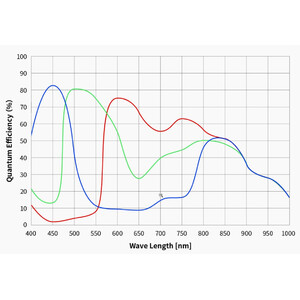

The ZWO ASI 678MM is the successor to the ASI 178MM. It stands out thanks to significantly lower noise, smaller pixels, higher sensitivity and improved resolution. In contrast, however, it has a slightly lower frame rate, which is still sufficient for planetary photography and can be increased again by using a smaller image section (ROI). The maximum full well capacity is also slightly lower than its predecessor, the ASI 178MM, but this is less important for planetary photography. The amplifier glow (Amp Glow) is no longer present in the ASI 678MM. In addition, the sensitivity in the near infrared has been significantly increased, allowing planets to be photographed even better in this spectrum – you will notice fewer negative seeing influences.

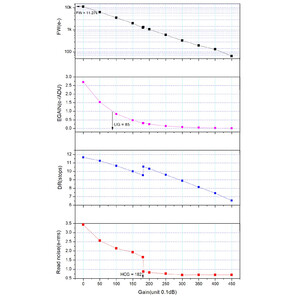

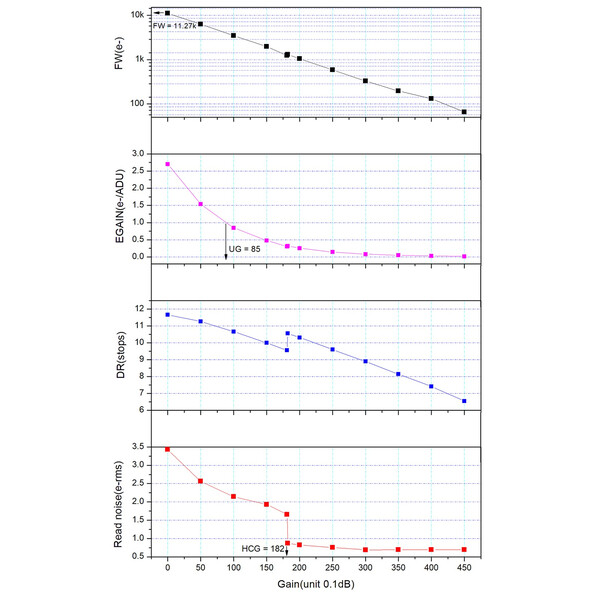

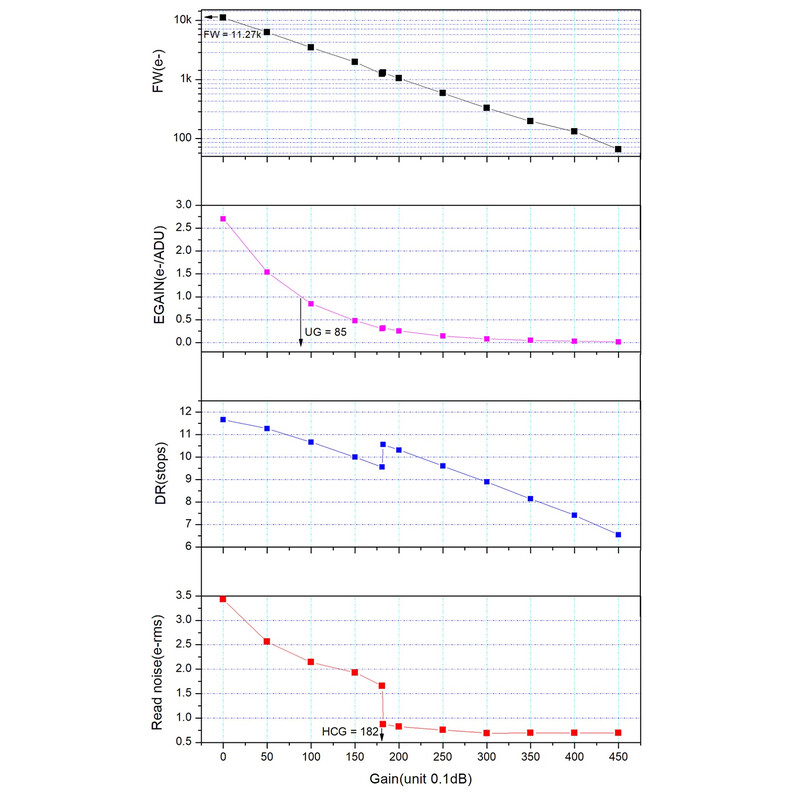

The ASI 678MM has a High Gain Mode, which is activated at a gain value of 182, significantly reducing readout noise and increasing the dynamic range by one stop.
The uncooled camera can also be used for deep sky photography to a limited extent, but the small chip size must be taken into account. It is therefore more suitable for compact planetary nebulae, double stars or globular clusters. The resolution of 8.3 megapixels is sufficient for deep sky photography.

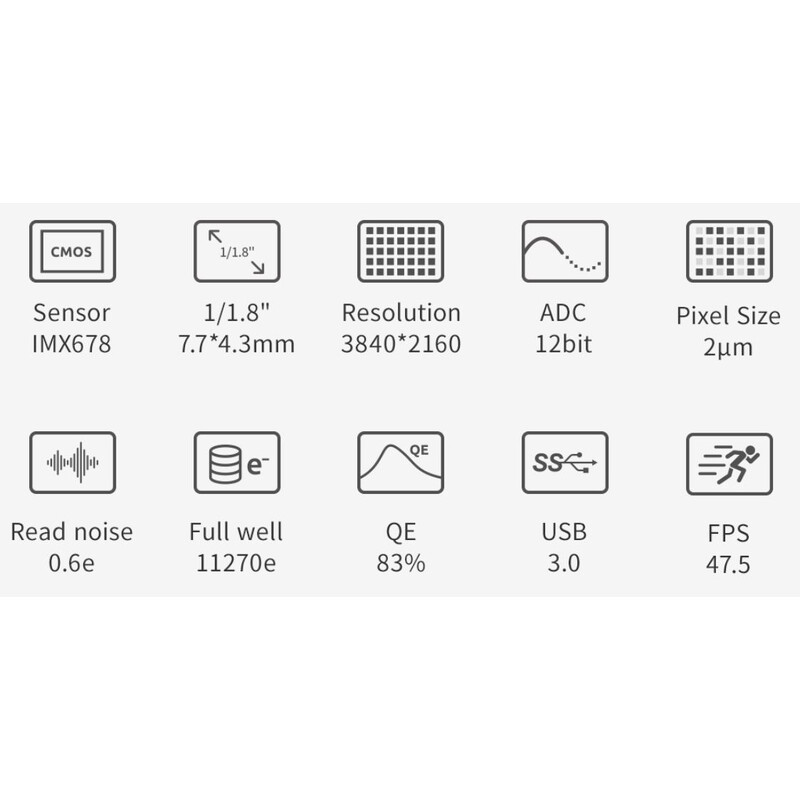

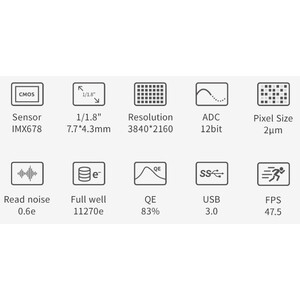

Specifications

Capacity

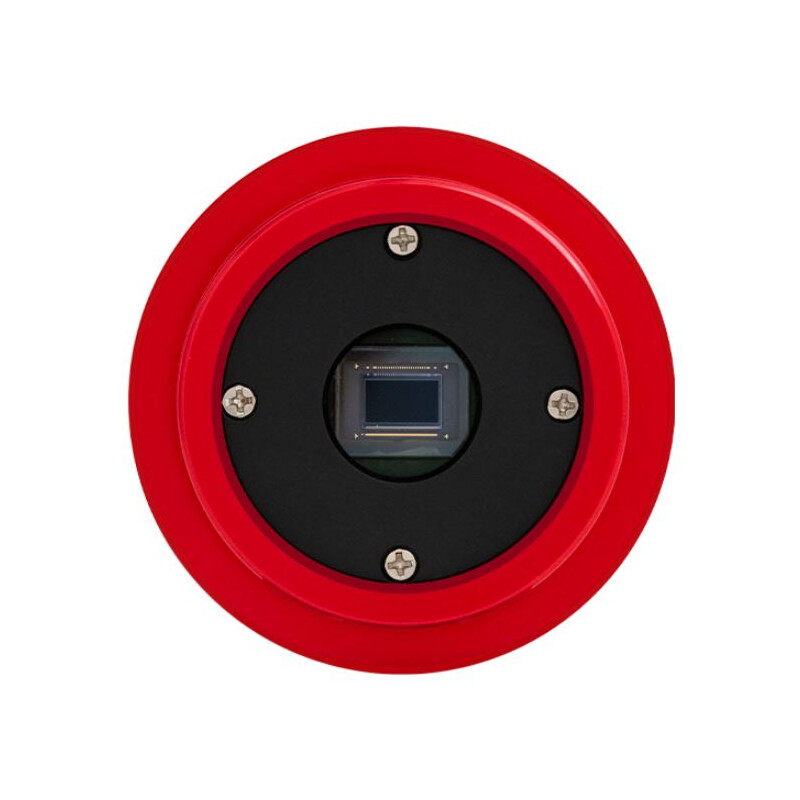

Sensor type

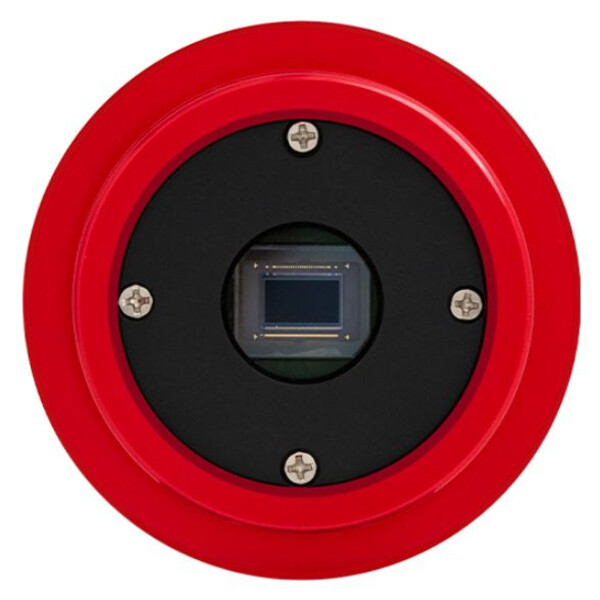

CMOS Chip (Sony IMX678)
Size of chip (mm)
7,7 x 4,3
Megapixel
8,3
Pixel size
2
Resolution Photograph (Pixel)
3840 x 2160
Bit depth (Bit)
12
Active cooling
no

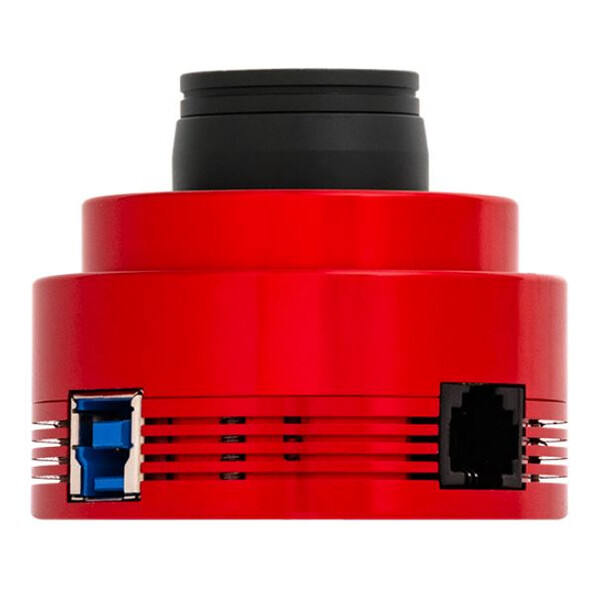

Interfaces

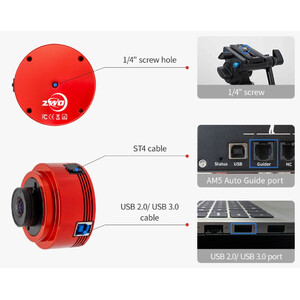

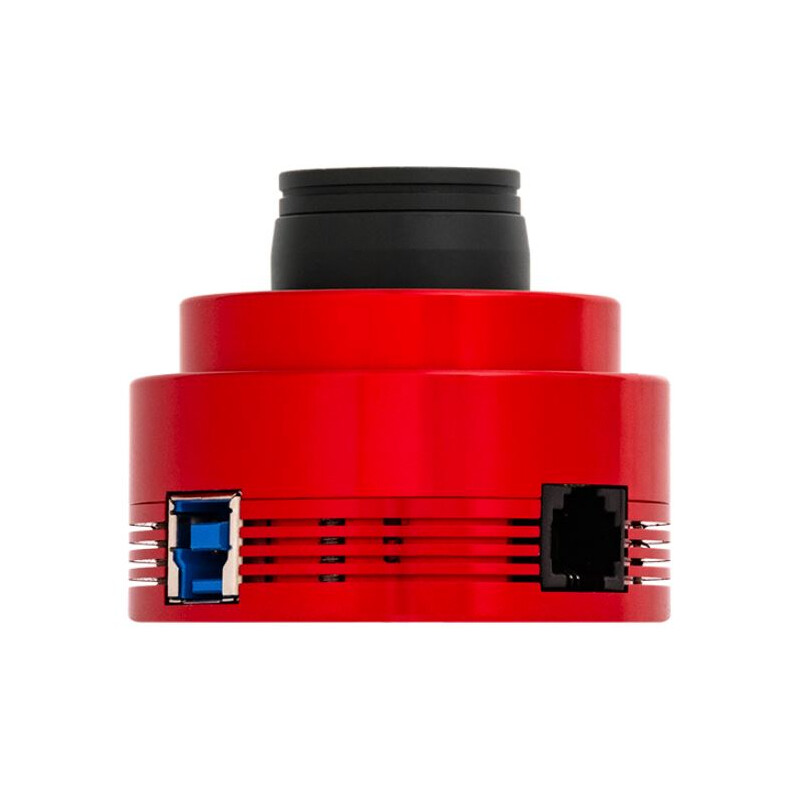

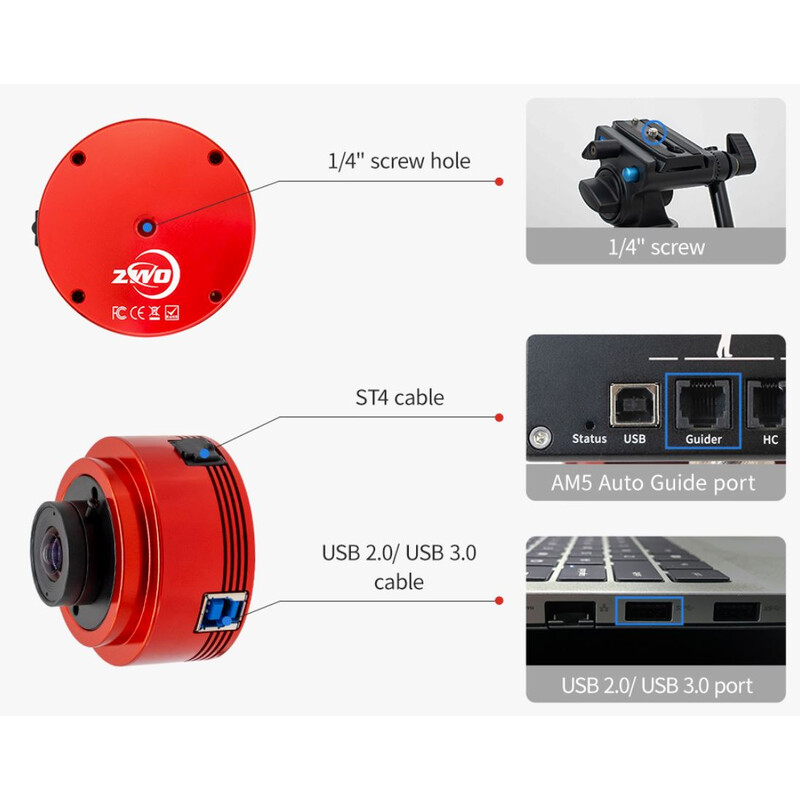

USB 3.0, ST-4
Connection (to the telescope)

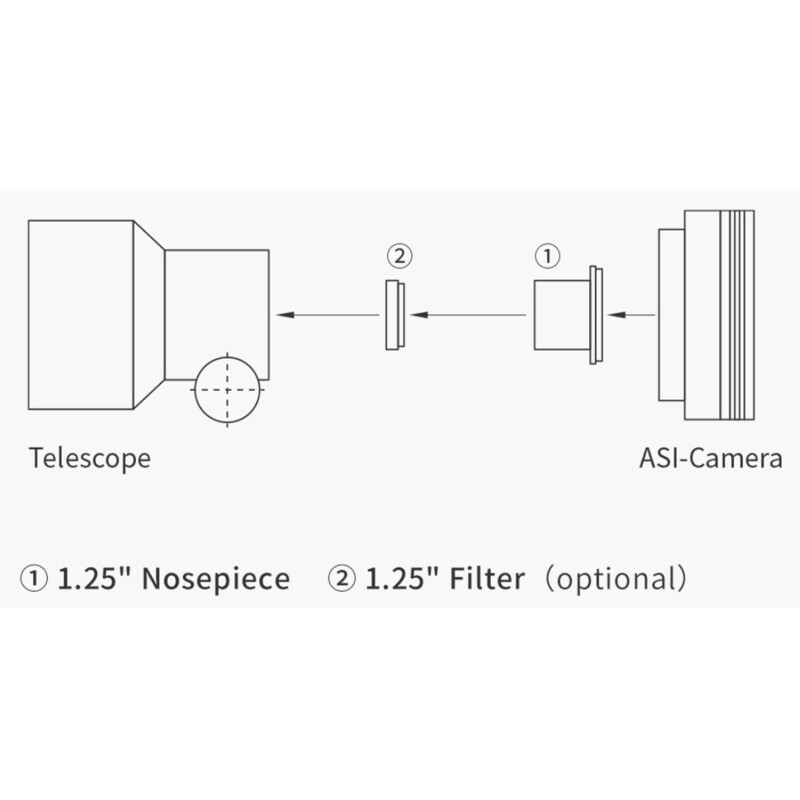

1,25" & T2
Colour camera
no
Operating temperature
-5° bis +50°
Max. exposure time (min)
33,3
Min. exposure time
32µ
Images per second
47,5 (at full resolution)
Reading noise
0,6
Full Well Capacity
11270
Flange focal distance (mm)
12,5
Power supply
5 (via USB)
Chip - Diagonal (mm)
6,4

Equipment


Filter wheel
no

General


Weight (g)
126
Series
ASI 678

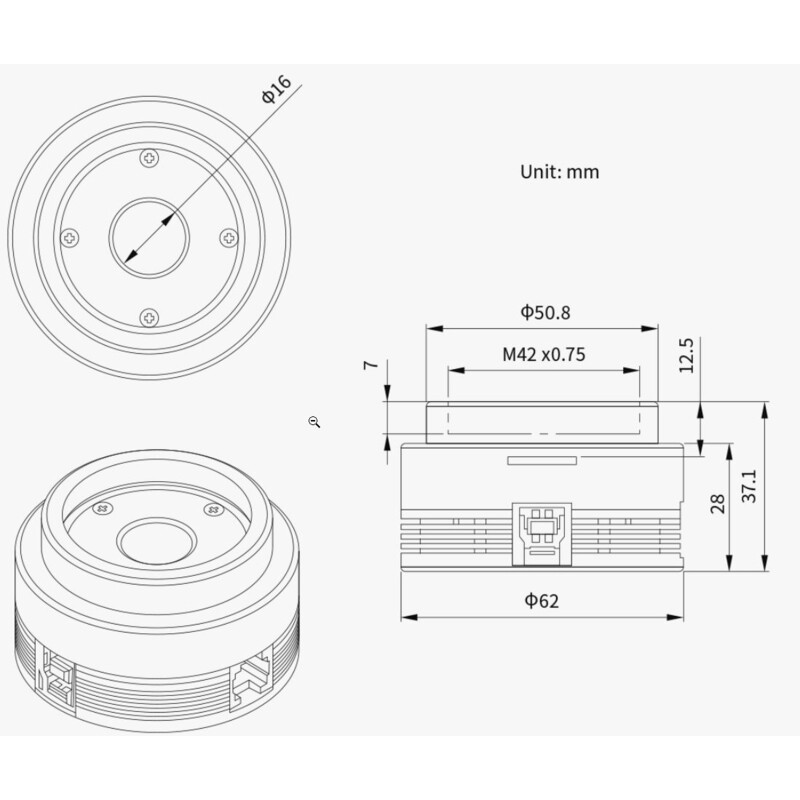

Diameter (mm)
62
Length (mm)
36

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Suzhou ZWO Co., Ltd., Moon bay road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
