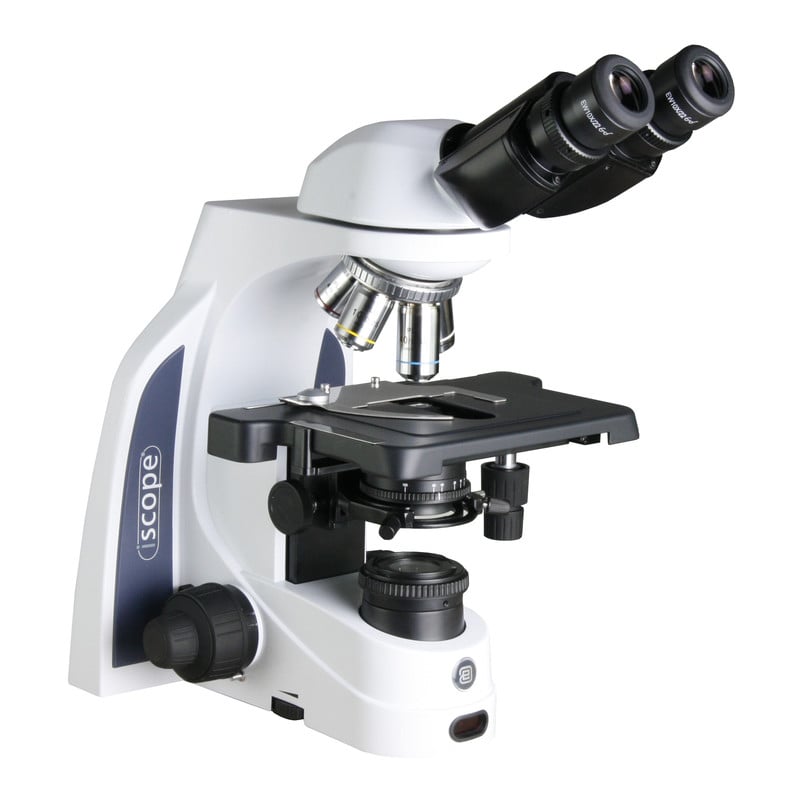

iScope® IS.1152-PLi – Binocular microscope with plan optics and Köhler LED
The iScope® IS.1152-PLi is a professional binocular microscope equipped with Plan IOS objectives in infinite optics and high-quality Köhler LED lighting. It was developed for applications that require high image quality and uniform lighting, such as veterinary medicine, technical education or material analysis.
The plan objectives ensure a flat, sharp image across the entire field of view, which is particularly advantageous for precise diagnostics or training with more complex sample structures. The Köhler lighting offers optimal control over light distribution and contrast – ideal for reproducible results with standard staining and clear structures.
iScope for brightfield IS.1152-PLi
- Eyepieces EWF10x/22 mm Ø 30mm
- Head Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives Plan EPLi 4x/0.10, PLi 10x/0.25, PLi S40x/0.65,EPLi S100x/1.25 oil-immersion DIN objectives. All optical parts are anti-fungus treated
- Stage 216 mm x 150 mm stage equipped with integrated 79 x 52 mm mechanical stage
- Condenser In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
