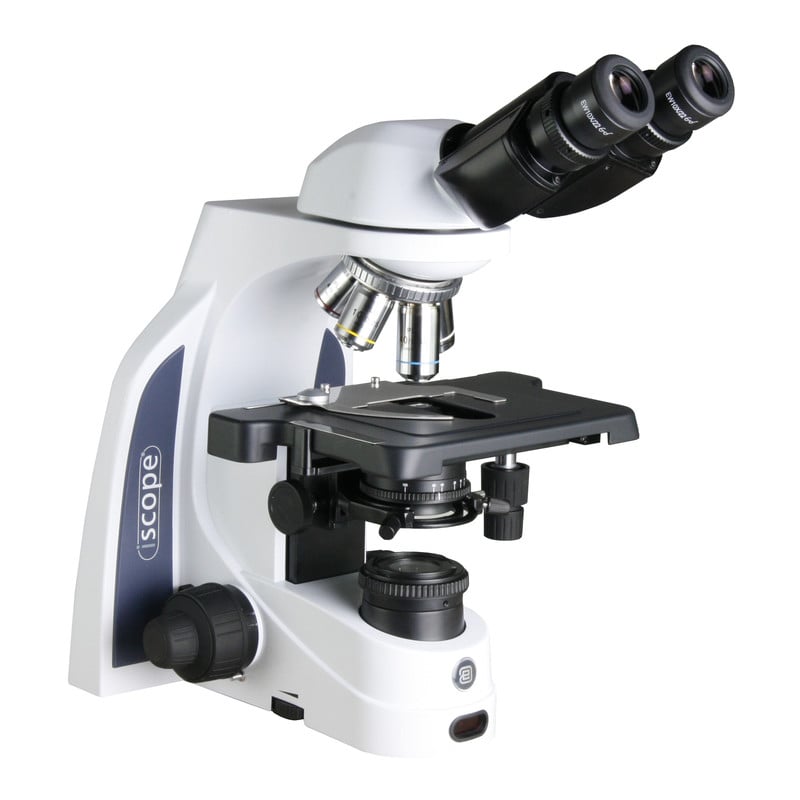

iScope® IS.1152-EPLi – Binocular training and diagnostic microscope with E-Plan IOS, without Köhler lighting
The IS.1152-EPLi is a compact, binocular microscope from the Euromex iScope® series, specially designed for use in training, education and veterinary diagnostics. It is equipped with E-Plan IOS lenses (infinity optics), which offer solid image quality and easy handling.
Unlike the higher-end PLi models, this model does not feature Köhler LED lighting, but uses simple LED transmitted light lighting for uncomplicated routine use. This makes it ideal for environments where user-friendly standard lighting and robust technology are paramount.
iScope for brightfield IS.1152-PLi
- Eyepieces EWF10x/22 mm
- Head Binocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN IOS objectives. All optical parts are anti-fungus treated
- Stage 156 x 138 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
