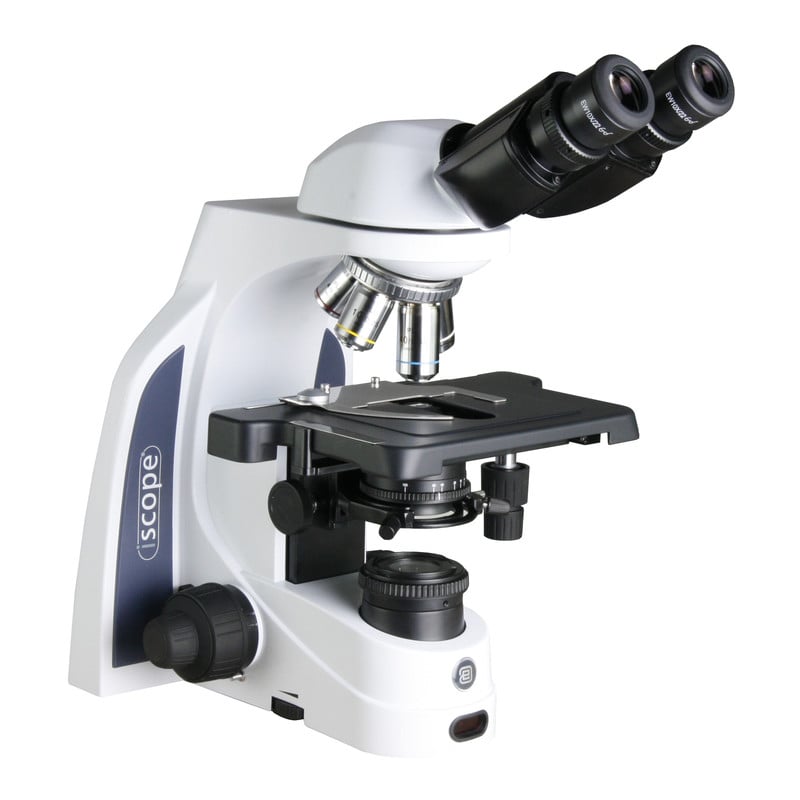

iScope® IS.1152-PLPHi – Binocular phase contrast microscope with plan optics and Köhler LED
The iScope® IS.1152-PLPHi is a powerful binocular microscope with plan phase contrast IOS lenses (infinite optics) and Köhler LED lighting. It has been specially developed for viewing unstained, transparent biological samples – ideal for veterinary medicine, routine clinical diagnostics or application-oriented teaching.
The integrated phase contrast system makes the finest cell structures, sediments or microorganisms visible – without any staining. The plan optics ensure high sharpness right to the edge of the image, while the precisely adjustable Köhler lighting allows for optimal contrast adjustment.
Euromex iScope for phase contrast IS.1152-PLPHi
- Eyepieces EWF10x/22 mm, Ø 30 mm
- Head Binocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives Plan PLi 4x/0.10, PLPHi 10x/0.25, PLPHi S40x/0.65, PLPHi S100x/1.25 oil-immersion IOS objectives. All optical parts are anti-fungus treated
- Stage 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Condenser In height adjustable Zernike, N.A. 1.25 condenser with positions for darkfield and brightfield.
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
