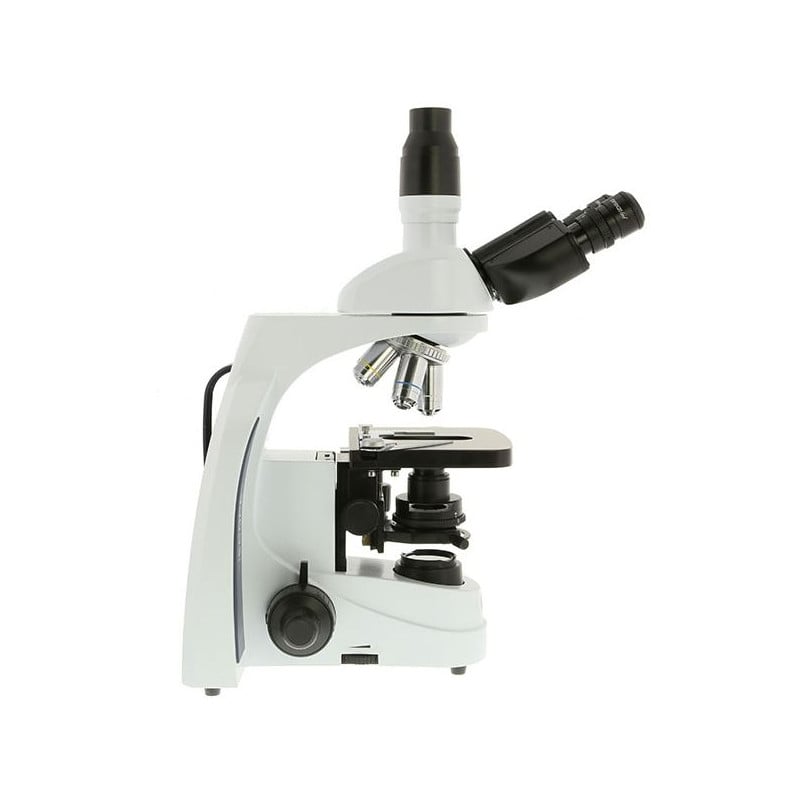

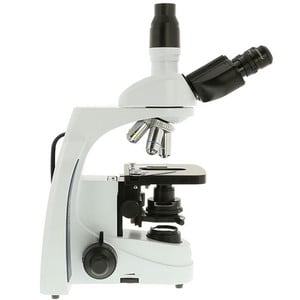

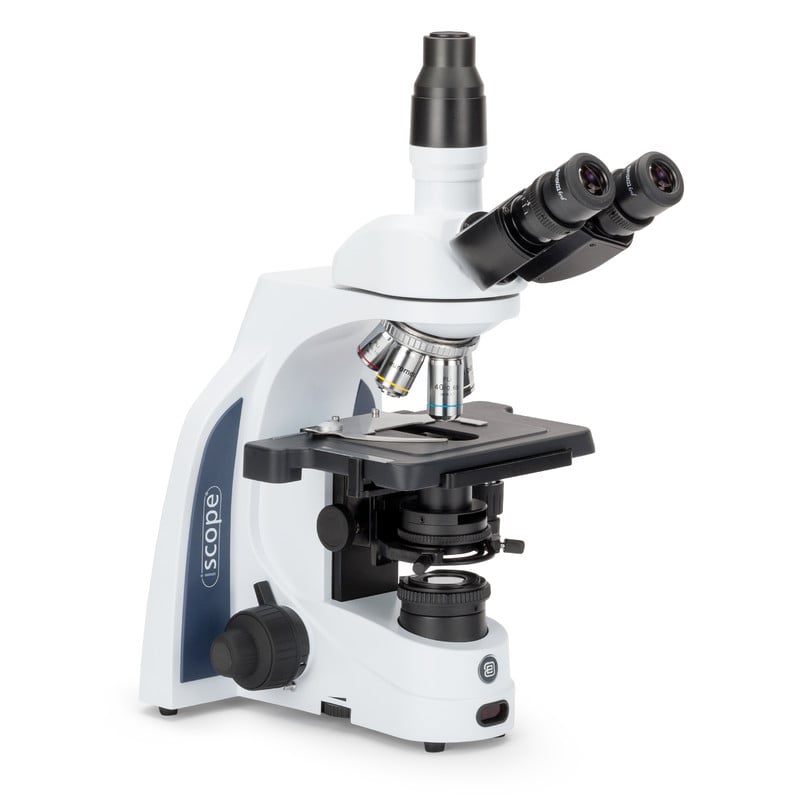

iScope® IS.1153-EPLi – Trinocular microscope with E-Plan IOS, without Köhler lighting
The IS.1153-EPLi is the trinocular version of the basic EPLi model and also offers a phototube for easy camera integration, ideal for digital documentation or live transmission in training.
This model also uses E-Plan IOS objectives with infinite optics and deliberately dispenses with Köhler lighting. The simplified LED lighting is perfect for teaching purposes, routine veterinary analyses or basic technical observations where quick, intuitive handling is more important than high-precision light guidance.
iScope for brightfield IS.1153-PLi
- Eyepieces EWF10x/22 mm
- Head Trinocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives E-Plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN IOS objectives. All optical parts are anti-fungus treated
- Stage 156 x 138 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
