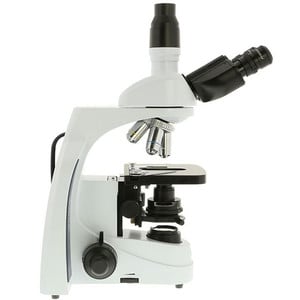

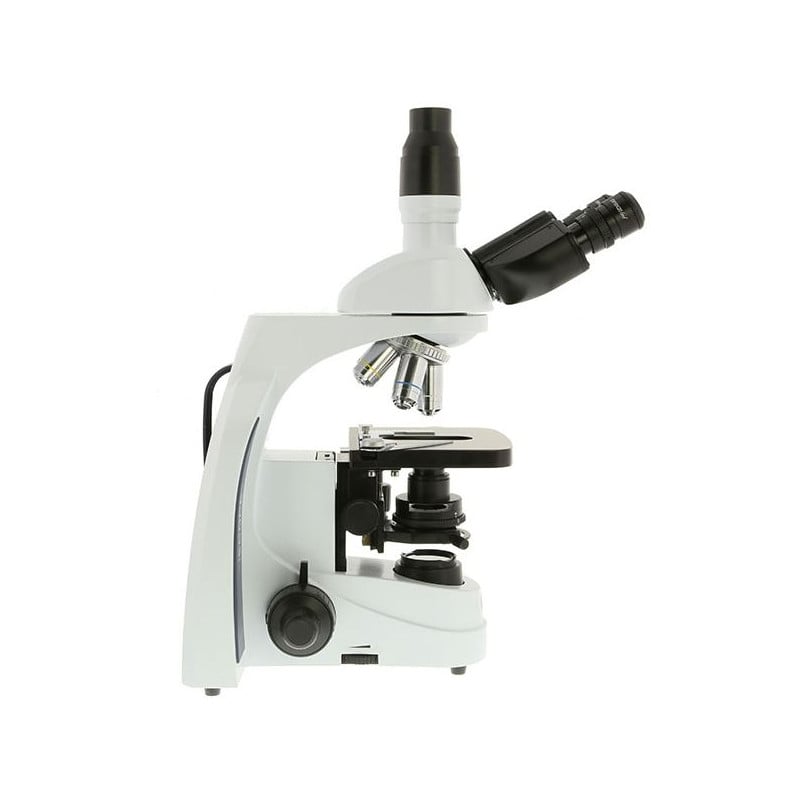

iScope® IS.1153-PLi – Trinocular microscope with plan optics and Köhler LED for documentation
The iScope® IS.1153-PLi expands the binocular PLi model with a trinocular phototube, which is ideal for integrating digital cameras or live image systems. It is equipped with Plan IOS lenses for particularly flat, high-contrast image reproduction and integrated Köhler LED lighting.
The uniform and controlled light guidance makes the microscope ideal for precise observations and digital documentation in veterinary medicine, technology or education. The 50:50 beam splitter allows simultaneous use of the camera and eyepiece – a plus for training or diagnosis.
iScope for brightfield IS.1153-PLi
- Eyepieces EWF10x/22 mm Ø 30 mm
- Head Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives E-Plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion IOS objectives. All optical parts are anti-fungus treated
- Stage 216 mm x 150 mm stage equipped with integrated 79 x 52 mm mechanical stage
- Condenser In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
