Microscopy > Microscopes > Upright microscopes > Phase contrast microscopes > Euromex > iScope > Euromex Microscope iScope IS.1153-PLPHi, trino
Product no.: 51457

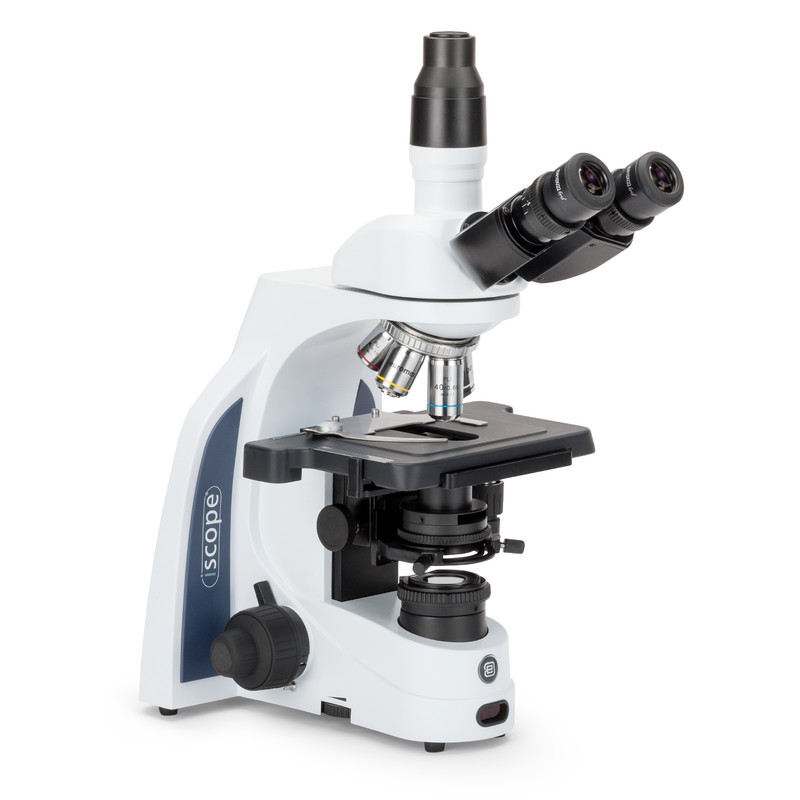

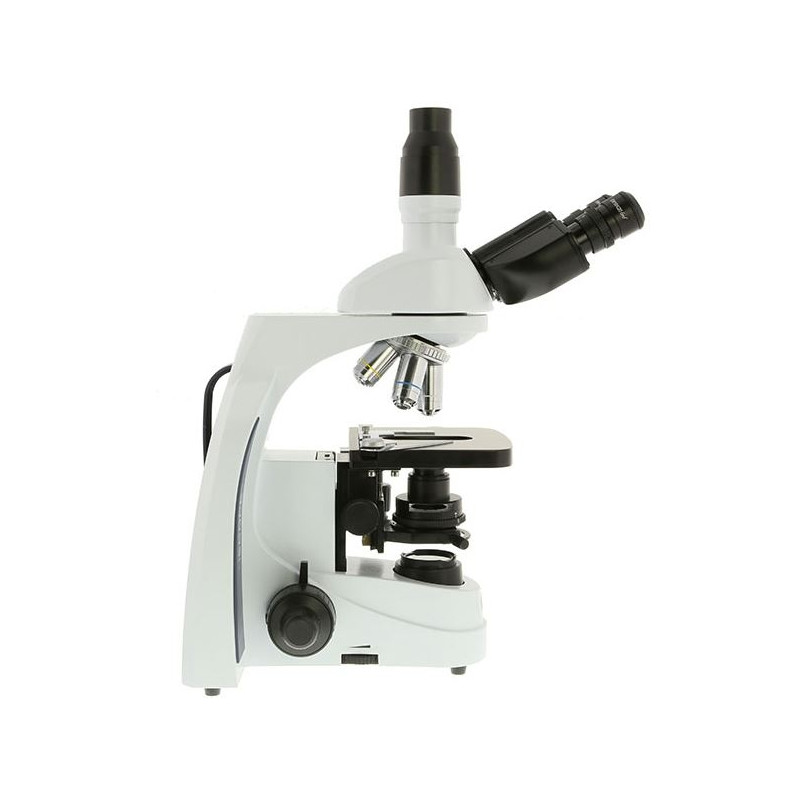

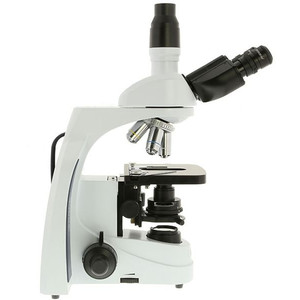

Microscope iScope IS.1153-PLPHi, trino

$ 2,690.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series iScope...

Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.

The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications

  • EWF10x/22 mm or EWF10x/20mm eyepieces
  • Binocular and trinocular heads
  • Quintuple nosepiece
  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25
  • Coarse and fine height adjustment
  • Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
  • iCare sensor for energy saving
  • CSS - Cable Storage System

  • Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
  • Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
  • Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications

The iScope is also available in a multi-head configuration

Euromex iScope for phase contrast IS.1153-PLPHi

  • Eyepieces EWF10x/22 mm, Ø 30 mm
  • Head Trinocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
  • Nosepiece Revolving quintuple reversed nosepiece on ball bearings
  • Objectives Plan PLPHi10x/0.25, PLPHi20x/0.40, PLPHi S40x/0.65, PLPHi S100x/1.25 oil-immersion IOS objectives. All optical parts are anti-fungus treated
  • Stage 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Condenser In height adjustable Zernike, N.A. 1.25 condenser with positions for darkfield and brightfield.
  • Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
  • Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
  • iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
  • CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
  • Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover

Specifications

Optics


Magnification
40 - 1000
Lighting
Transmitted light
Lamp type
LED
Field curvature
Plan
infinity corrected
yes
Eyepiece
EWF 10x / 22 mm (Ø 30mm)
Number of objectives
4
Objective 1
10x / 0.25 (plan phase)
Objective 2
20x / 0.40 (plan phase)
Objective 3
S40x / 0.65 (plan phase)
Objective 4
S100x / 1.25 (plan phase oil)
Suspension
yes
Immersion lens
yes
Colour correction
achromatic
Condensor
Zernike disc condenser
Optical system
infinity

Capacity


Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (200 x 1µm)
Specimen stage
Cross table (216 x 150 mm, (x/y 79 x 52mm) rackless)
Revolver
5

General


Series
iScope
Weight (g)
9000
Width (mm)
210
Length (mm)
255
Height (mm)
407

Contrast methods


Phase contrast
yes

Field of application


Medicine
yes
Industry
-
Biology
yes

Area of application


Gynecology
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Urology
yes
Marine Biology
yes

Miscellaneous


supplier product number
IS.1153-PLPHi
