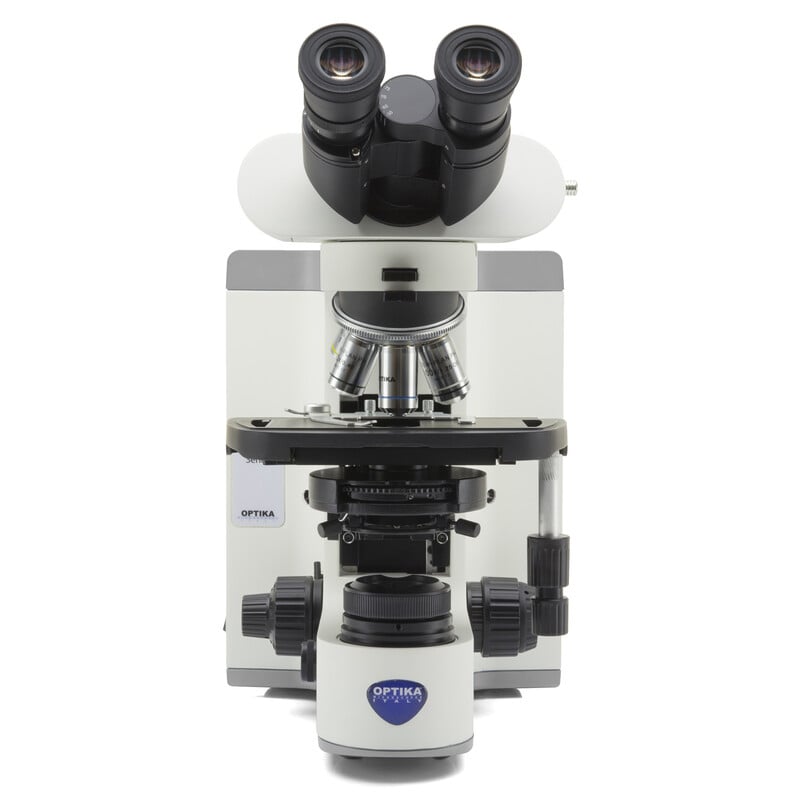

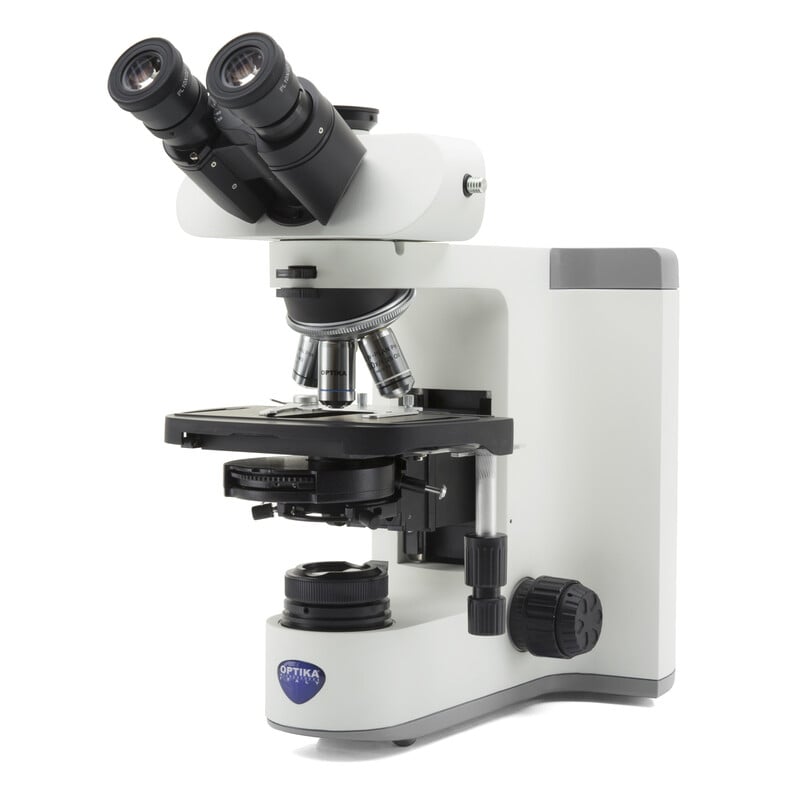

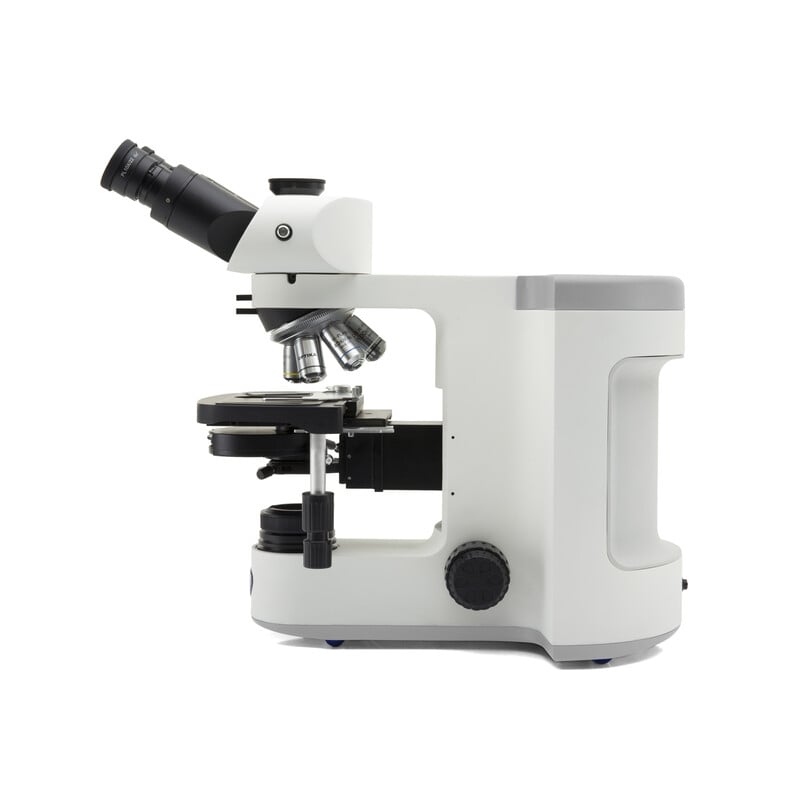

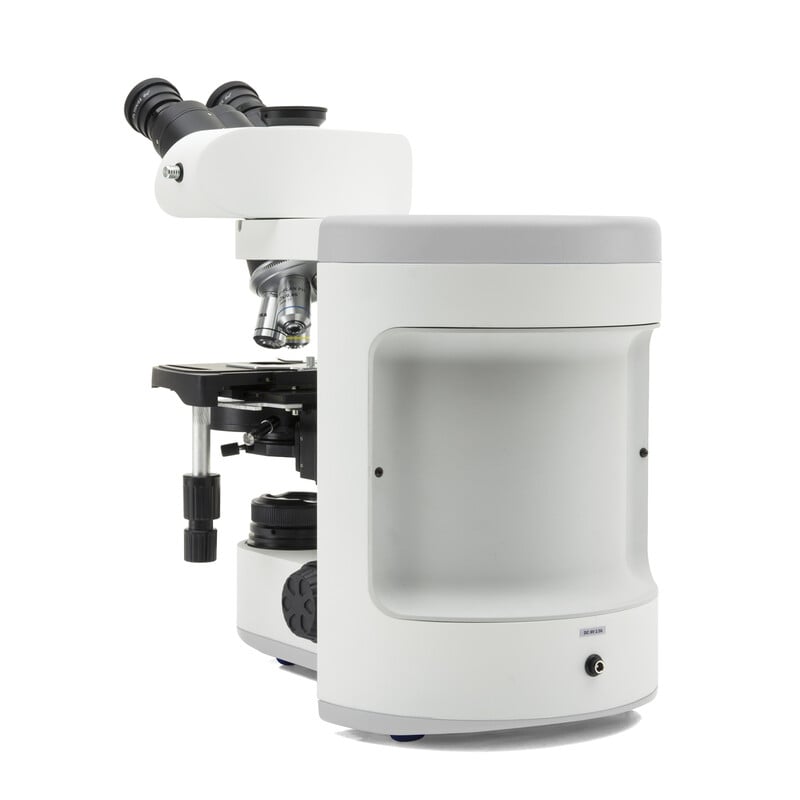

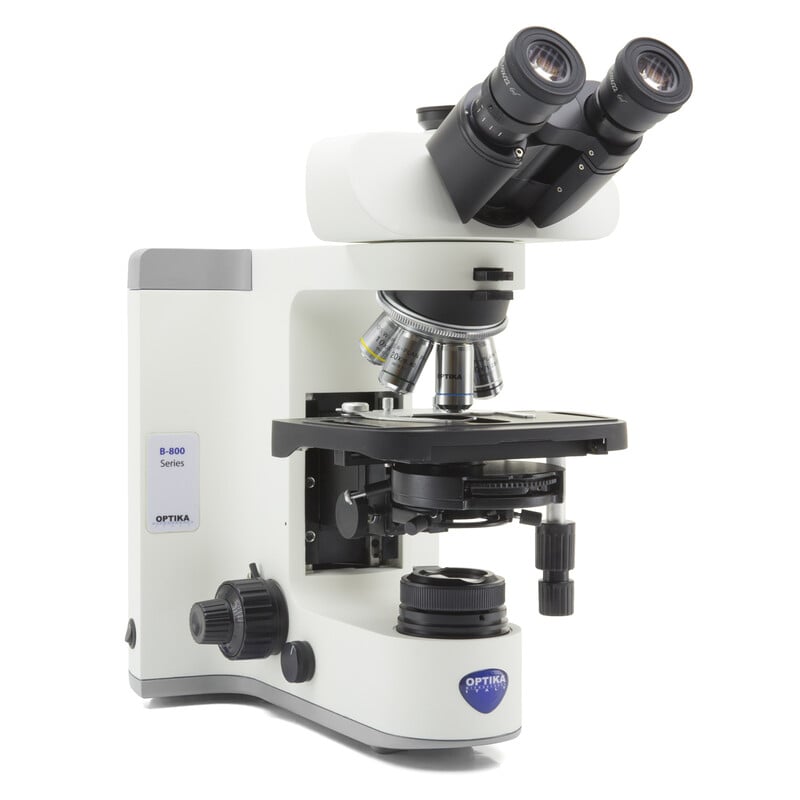

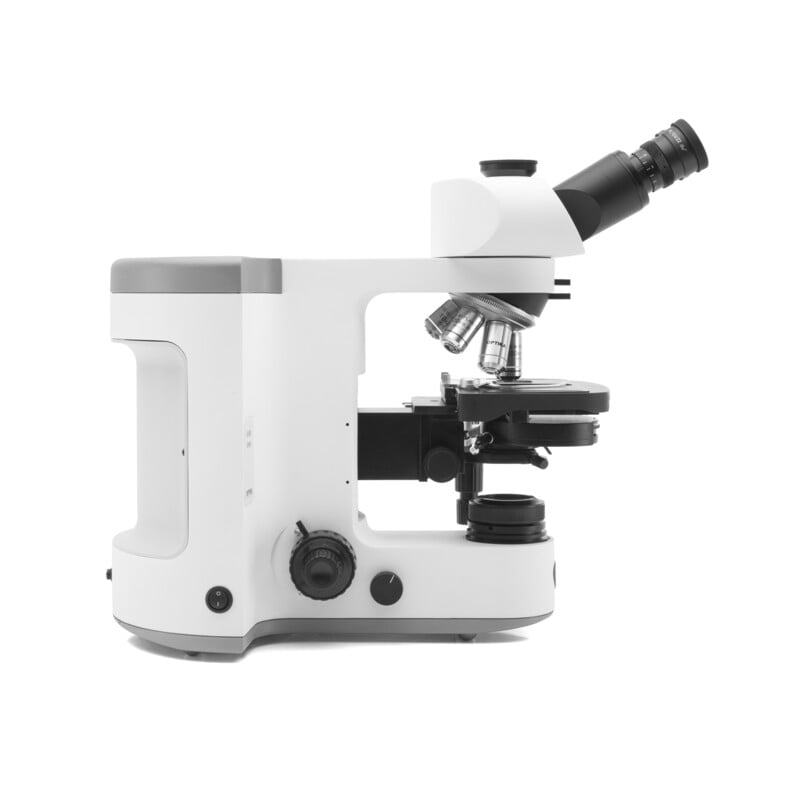

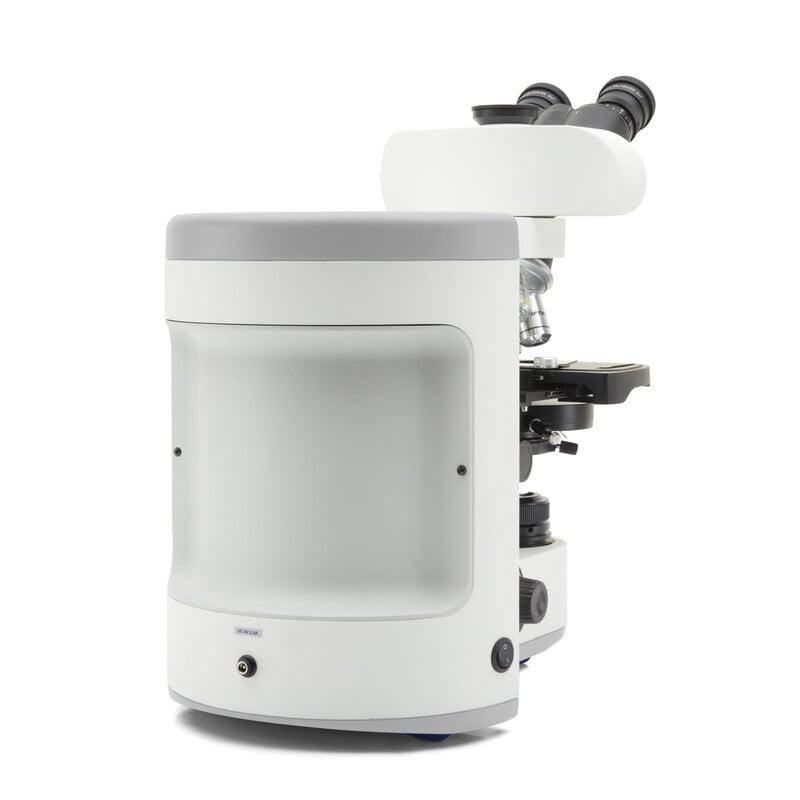

Optika B-810PH phase contrast laboratory microscope
The Optika B-810PH is the phase contrast kit from the B-810 series designed for universities, biological laboratories and microbiological applications involving transparent or unstained specimens. It is aimed at users who wish to visualise structures that are only faintly visible or lack contrast under conventional bright-field illumination.
The kit comprises an upright trinocular phase contrast microscope with infinity optics, 1000x total magnification and IOS W-Plan PH lenses with magnifications of 10x, 20x, 40x and 100x oil. The Siedentopf trinocular head is inclined at 30°, rotates through 360° and features a 50/50 light split for simultaneous observation and camera adaptation.
The integrated X-LED³ lighting provides bright, white transmitted light with an output of 3.6 W, manual brightness control and a service life of over 65,000 hours. In conjunction with full Köhler lighting, light guidance, contrast and resolution can be precisely adjusted. This is particularly advantageous for unstained biological samples, microbiological specimens and teaching materials with low intrinsic contrast.
A key difference from the B-810BF is the multi-position condenser. This is designed for brightfield, phase contrast and dry dark field and has five positions: BF, 10x/20x, 40x, 100x and DF. This makes the B-810PH more versatile when, in addition to phase contrast, brightfield or dark field for dry applications is required.
Advantages
- High-quality phase contrast microscopes for laboratories and universities
- Suitable for transparent and unstained specimens
- IOS W-Plan PH objectives: 10x, 20x, 40x and 100x oil
- Multi-position condenser for brightfield, phase contrast and dry dark field
- Trinocular head with 50/50 light split for camera adaptation
- 10x wide-field eyepieces with a field number of 22
- X-LED³ transmitted light illumination with 3.6 W and manual brightness control
- Full Köhler lighting for optimised contrast control
- Rackless cross-table with 78 × 54 mm travel
- Coaxial coarse and fine adjustment with 2 µm fine resolution
- Customisable system
Recommended for
universities, microbiology, biological laboratory work, central laboratories, phase contrast practicals and unstained specimens.
Scope of delivery
OPTIKA B-810PH phase contrast laboratory microscope, IOS W-Plan PH lenses 10x, 20x, 40x and 100x oil, trinocular Siedentopf head, 10x/22 eyepieces, quintuple reversed objective revolver, rackless cross-table, multi-position condenser for BF/PH/DF, X-LED³ transmitted light illumination, external power pack with EU/UK/US multi-plug, dust cover, 10 ml immersion oil, tension adjustment tool, Allen key and digital user manual available for download.
