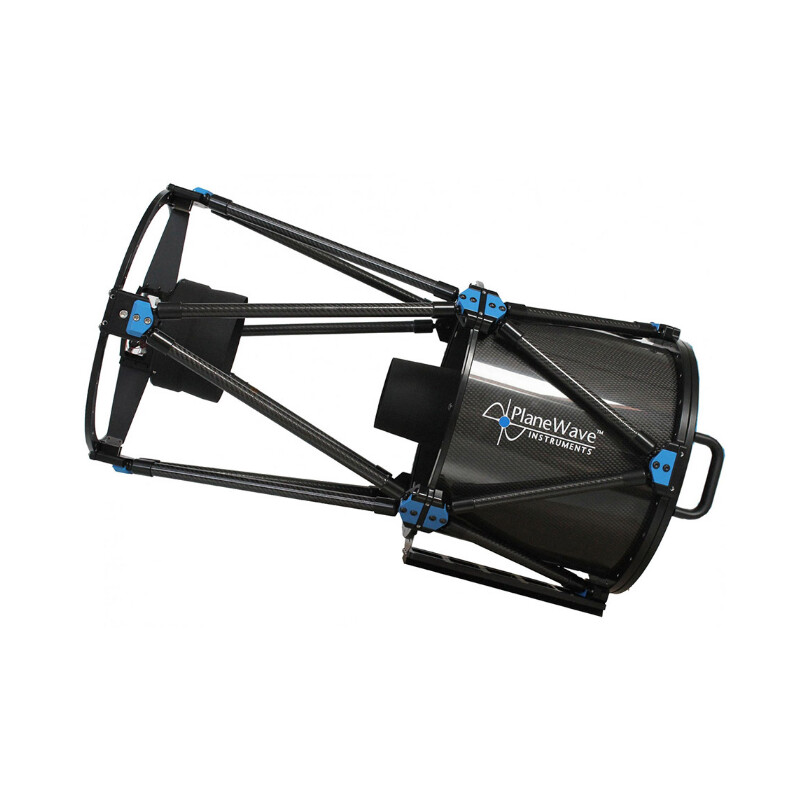

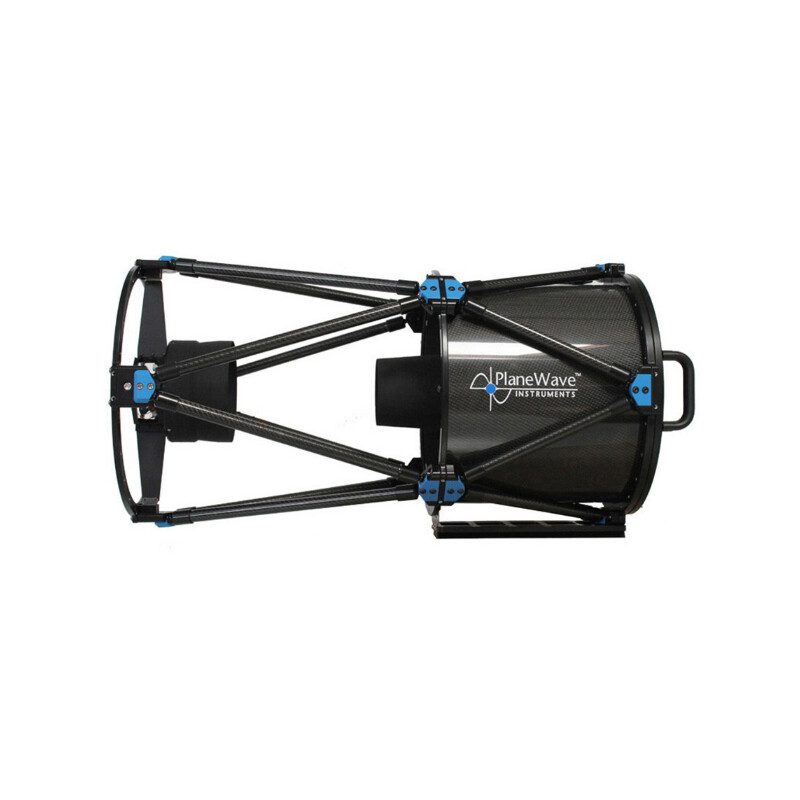

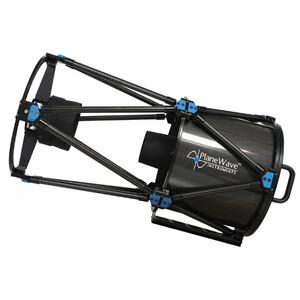

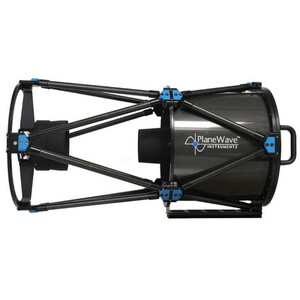

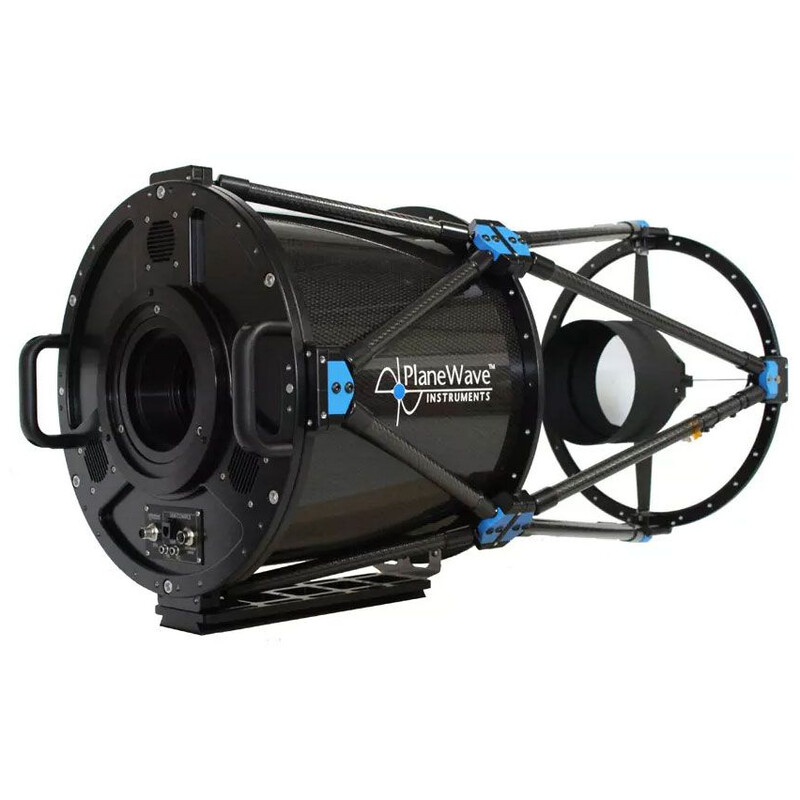

Dall–Kirkham telescope DK 356/2563 IRDK CDK14 Astrograph

$ 27,200.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Special version of the astrograph for IR astronomy: The IRDK is a Dall-Kirkham design with a coating optimised for the transmission of infrared wavelengths. There are no refracting lenses, only reflective components. For IR applications, the mirror coatings are made of protected gold, which provides a reflectivity of more than 98% in the range from 0.65 micrometres (650 nm) to 5 micrometres (5000 nm). This design is ideal for infrared astronomy or LIDAR applications.

PlaneWave CDK14 Astrograph f/7.2: With the CDK 14", Planewave presents an astrograph with quartz glass optics

  • modified according to Dall-Kirkham, with a fully corrected image field with a diameter of 70 millimetres
  • 3" prism rail
  • Hedrick focuser and EFA kit available separately, prepared for Delta T heater

The CDK optical design

The PlaneWave CDK layout is an optical design based on the classic Cassegrain design by Dall-Kirkham.

It was developed to accommodate the ever-increasing size of chips in digital and CCD cameras. With many other mirror optics, you quickly see off-axis aberrations such as coma and/or astigmatism; in addition, many systems suffer from image field curvature, which causes the images of stars to become increasingly blurred as they move away from the optical axis.

The image field is free of coma and astigmatism. In addition, the image field plane is absolutely flat and level across this diameter, so that stars are reproduced with the same sharpness across the entire field in the focal plane.

The CDK design offers a perfect solution to the problems mentioned above, with an excellent price-performance ratio and moderate delivery times.
It consists of:

  • an elliptically curved primary mirror
  • a spherical secondary mirror
  • and a 2-lens field corrector

All three optical elements are perfectly matched to each other to achieve the incredible image quality. The image quality is largely dependent on the seeing conditions at the location.

The quartz glass (fused silica) used is a synthetic amorphous quartz glass of the highest purity and one of the most transparent glasses available. Due to its purity, the optical and thermal properties of quartz glass are superior to other types of glass. Its transmission and homogeneity exceed those of crystalline quartz and avoid the problems of temperature instability that crystalline quartz glasses suffer from.

Fused silica has a thermal expansion coefficient six times lower than that of borosilicate glass (Pyrex). It therefore retains its shape with a very high degree of accuracy when it cools. This results in consistent optical performance and an unchanged focal point during temperature changes.

Scope of delivery:

  • Telescope with prism rail
  • Built-in heating elements to prevent condensation - The heating elements on the primary and secondary mirrors require the separately available Delta-T controller for PlaneWave telescopes with pre-installed wiring for the heating
  • Cover to protect the primary mirror and the inside of the optical tube
  • Cover for the secondary mirror
  • Flash drive with software and instructions for collimation and primary-secondary mirror alignment
  • Tool kit
  • 12V AC adaptors

Specifications

Optics


Type
Reflector
Type of build
Dall–Kirkham telescope
Aperture (mm)
356
Focal length (mm)
2563
Aperture ratio (f/)
7,2
Resolving capacity
0,39
Limit value (mag)
14,6
Light gathering capacity
2590
Max. useful magnification
712
Tube weight (kg)
22
Tube length (mm)
889
Tube material
Carbon
Tube construction
Truss Tube
Fully Corrected Field (mm)
52

Reflector


Primary mirror - Diameter (mm)
356
Secondary mirror diameter (mm)
165
Secondary mirror obstruction
48,5
Ventilation for central mirror
yes
Secondary Mirror Heating
yes
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass
Main mirror´s construction
elliptical
secondary mirror design
spherical
reflectivity
96

Focuser


Type of build
without
Backfocus (mm)
282

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Corrector
integrated
Prism rail
Losmandy-Style
Carrying handle
yes
Tube clamps
yes

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for


Beginners
no
Advanced
no
Observatories
yes

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de

Recommended accessories

Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (28)

PlaneWave EFA Electronic Focusing Accessory CDK14/17/20/24

$ 1,770.00*
Astronomy > Eyepieces (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (6)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.
